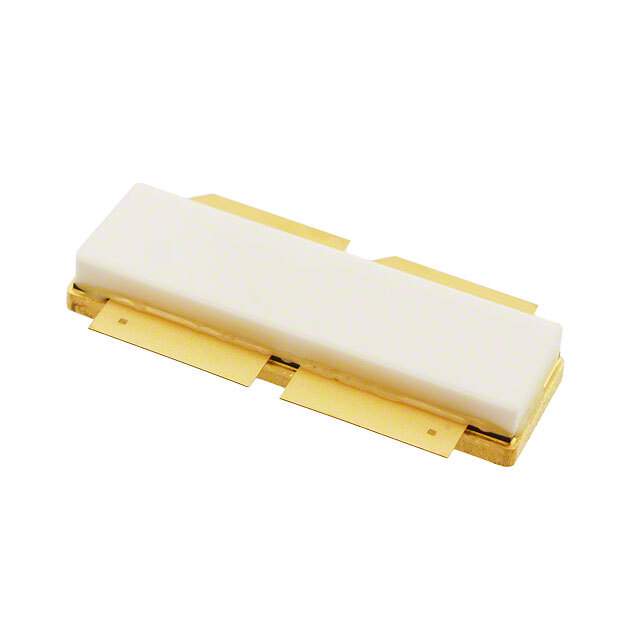

NXP MRFE6VP61K25HSR5 RF Power LDMOS Transistor

The NXP MRFE6VP61K25HSR5 is a high-power, high-performance RF power LDMOS transistor designed for a wide range of applications, including broadcast, industrial, scientific, and medical (ISM) uses. This device is particularly well-suited for radio and VHF television broadcast transmitters, offering exceptional efficiency and reliability.

Key Features

• Wide Frequency Range: Operates across a broad frequency spectrum from 1.8 to 600 MHz, making it highly versatile for various applications.
• High Output Power: Capable of delivering up to 1250W CW output power, providing significant amplification for broadcast and communication systems.
• High Efficiency: Offers a high drain-source efficiency of up to 78%, ensuring less power is wasted as heat and more is used for signal amplification.
• Integrated ESD Protection: Features integrated ESD protection that enhances the robustness of the device, ensuring long-term reliability and stability.
• Ruggedness: Can withstand a VSWR of 65:1 at 50V, making it resilient against mismatched load conditions.

Applications

• RF power amplifiers for FM broadcast
• VHF television transmitters
• Industrial heating and plasma generation
• Particle accelerators
• Medical applications such as MRI and RF ablation

Product Specifications

With its outstanding combination of performance, efficiency, and durability, the NXP MRFE6VP61K25HSR5 is a top choice for professionals seeking a reliable RF power solution.
