NXP MSC8156ETAG1000B DSP Product Overview

The NXP MSC8156ETAG1000B is a cutting-edge digital signal processor (DSP) that offers a powerful solution for a wide range of applications, including wireless infrastructure, aerospace and defense, medical imaging, and industrial control systems. This high-performance DSP is part of NXP's MSC815x/6x family, known for its advanced signal processing capabilities and efficient architecture.

Key Features

• Core: The MSC8156ETAG1000B is built on StarCore SC3850 DSP core technology, featuring six cores that can run at a frequency of up to 1 GHz. This enables the DSP to deliver an impressive 6,000 MMACs (Million Multiply-Accumulates per Second) of performance, providing the computational power needed for demanding signal processing tasks.
• Memory: It is equipped with a robust memory subsystem, including 1.5MB of L2 cache, which enhances the overall system performance by reducing latency and improving data throughput.
• Interfaces: The device includes a variety of interfaces to ensure flexible connectivity options. These include multiple Serial RapidIO (SRIO) ports, PCI Express (PCIe) interfaces, and Gigabit Ethernet ports, which facilitate high-speed data transfers and connectivity with other components in a system.
• MAPLE-B2P Accelerator: The MSC8156ETAG1000B integrates the MAPLE-B2P baseband acceleration processor, which is designed to offload complex baseband processing tasks from the DSP cores, thereby freeing them up for additional processing and control tasks.

Applications

The versatile nature of the MSC8156ETAG1000B makes it suitable for a broad spectrum of applications. Its high processing power and specialized accelerators are particularly beneficial for wireless base station applications, including 3G, 4G, and 5G networks. Additionally, its capabilities are well-suited for voice and video processing, medical imaging systems, and industrial control applications that require high-speed signal processing.

Product Package and Environmental Compliance

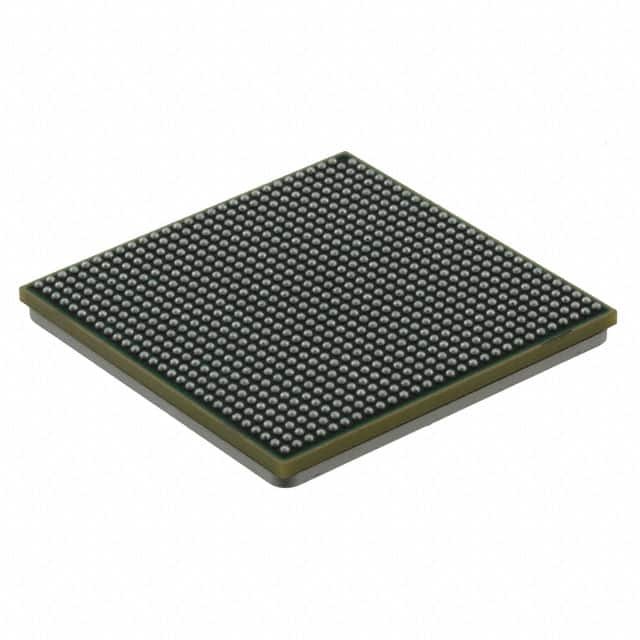

The MSC8156ETAG1000B comes in a 783-pin FCPBGA (Flip Chip Plastic Ball Grid Array) package, ensuring a compact footprint and reliable interconnection with the printed circuit board. NXP is committed to environmental sustainability, and this product complies with RoHS (Restriction of Hazardous Substances) standards, ensuring it meets global environmental regulations.
