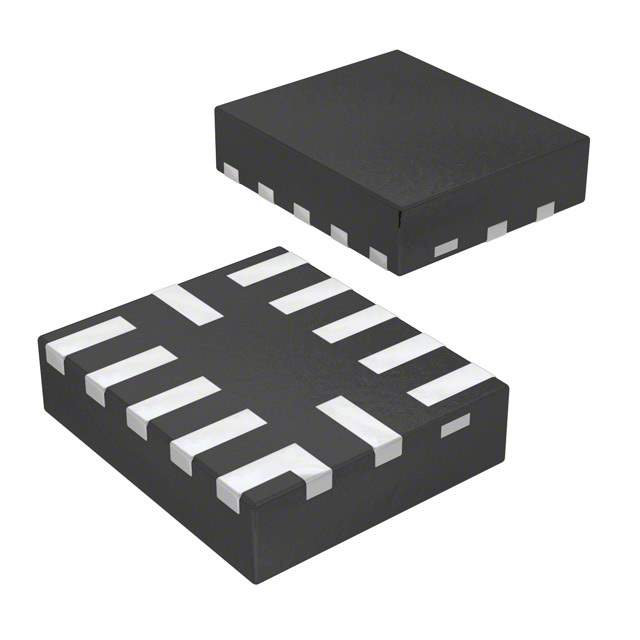

The NTB0104GU12 is a versatile bidirectional voltage-level translator from NXP Semiconductors, designed to bridge the gap between devices operating at different voltage levels. This product is part of the high-performance, low-power logic family and is essential for multi-voltage systems where signal level translation is required for proper communication between components.

Key Features

• Dual Supply Voltage: The NTB0104GU12 operates with a dual supply voltage, allowing translation between 1.0V and 3.6V on the A side (VCCA) and 1.8V to 5.5V on the B side (VCCB). This feature enables seamless communication between low-voltage microcontrollers and higher voltage peripherals.
• Bidirectional Translation: With automatic direction sensing, this device does not require a direction control pin, simplifying design and saving board space.
• High-Speed Operation: The device supports high-speed signal propagation with minimal propagation delay, making it suitable for high-frequency applications.
• Low Standby Current: It has a low standby current, contributing to energy-efficient designs, which is critical for battery-powered applications.

Applications

The NTB0104GU12 is ideal for a broad range of applications, including:

• Mobile devices where interfacing between different voltage domains is required.
• Level shifting for I2C/SPI and other bus systems in mixed-voltage environments.
• General purpose logic level conversion for interfacing microcontrollers with peripherals such as sensors, ADCs, and DACs.

Technical Specifications

In summary, the NTB0104GU12 from NXP is a highly flexible level translator, providing a reliable solution for mixed-voltage system integration. Its dual-supply operation, bidirectional interface, and low power consumption make it an excellent choice for modern electronics that require efficient voltage-level translation.
