The PBHV9560ZX is a high-voltage power transistor manufactured by NXP Semiconductors, renowned for its robust performance and efficiency in various applications. This NPN silicon power transistor is designed to handle significant voltages, making it an ideal choice for switch mode power supplies (SMPS), lighting circuits, and industrial power management systems.

Key Features

• Voltage Capabilities: The PBHV9560ZX boasts a collector-emitter voltage (Vceo) of up to 600V, providing the ability to handle high power applications with ease.
• Current Handling: With a continuous collector current (Ic) of up to 1A, this transistor can manage considerable current flow for its size and class.
• Power Dissipation: The device can dissipate up to 25W, ensuring that it can maintain stability and performance under high power conditions.
• High-Speed Switching: Its fast switching capabilities make it suitable for high-frequency operations, a critical feature for modern power supply designs.
• Low Saturation Voltage: The low collector-emitter saturation voltage helps to reduce power loss and improve overall efficiency during operation.

Applications

The PBHV9560ZX's high-voltage and current capabilities make it well-suited for a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Power Management Systems
• Lighting Circuits
• High-Voltage Switching
• Industrial and Commercial Electronics

Reliability and Quality

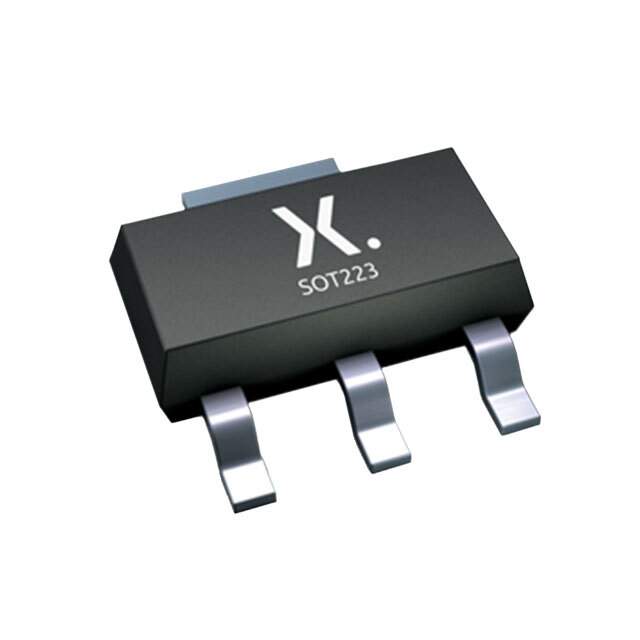

NXP Semiconductors ensures that the PBHV9560ZX meets the highest quality and reliability standards. The transistor is encapsulated in a SOT223 plastic package, which provides excellent thermal performance and mechanical durability. With NXP's commitment to quality, customers can expect consistent and reliable operation from the PBHV9560ZX in their electronic designs.
