Product Overview: PBSS3540M,315 by NXP Semiconductors

The PBSS3540M,315 is a high-performance, low V<sub>CEsat (Collector-Emitter saturation voltage) BISS (Breakthrough In Small Signal) transistor, meticulously designed and manufactured by NXP Semiconductors. This device is part of NXP's innovative portfolio of medium power transistors that provide energy-efficient solutions for a wide array of applications.

The PBSS3540M,315 is built using a modern, high-speed planar technology which results in a reduced collector-emitter saturation voltage and minimized on-state resistance. This leads to increased efficiency and improved thermal performance, making it an ideal choice for applications that require high switching speeds and low power loss.

Key Features:

• Low Collector-Emitter Saturation Voltage: The device offers a V<sub>CEsat as low as 40 mV at 1 A, which significantly reduces power dissipation and enhances overall efficiency.
• High Collector Current Capability: With a maximum collector current (I<sub>C) of up to 3 A, the PBSS3540M,315 can handle significant current loads, making it suitable for demanding applications.
• Medium Power Capacity: The transistor can dissipate up to 1.25 W, allowing it to be used in medium power applications.
• High-Speed Switching: The device is designed for high-speed switching, with a typical switching time in the nanosecond range, ensuring rapid response in circuits where timing is critical.

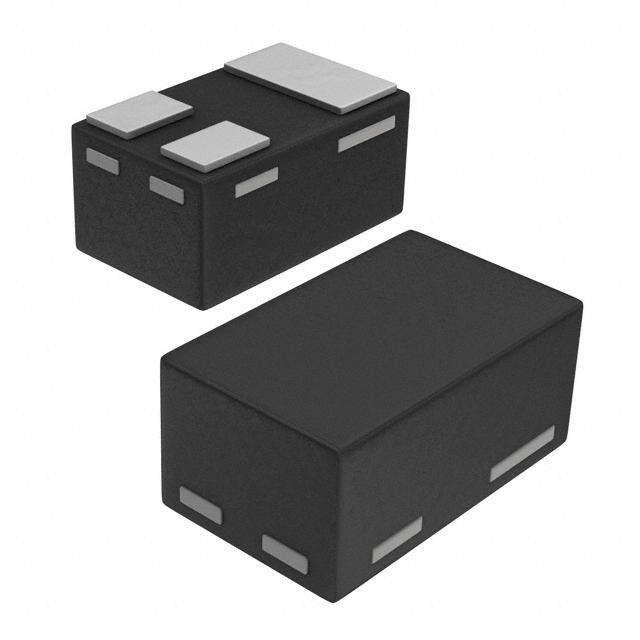

• Small Package Footprint: Enclosed in a small SOT883B (DFN1006B-3) surface-mount package, the PBSS3540M,315 is optimized for space-constrained applications.

Applications:

The versatility of the PBSS3540M,315 allows it to be used in a variety of applications, including but not limited to:

• Switching regulators
• DC-DC converters
• Power management circuits
• Load switches
• Motor control circuits
• LED drivers

With its robust performance characteristics, the PBSS3540M,315 transistor from NXP Semiconductors is an excellent choice for designers looking to enhance the efficiency and reliability of their electronic systems. Its low power loss, high current handling, and compact design make it a valuable component in any medium power electronic design.
