Products specifications

RoHS State Request Verification
Manufacturer NXP
Win Source Part Number 1236115-PCA9633DP2
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCA9633DP2 CAD Model

Description

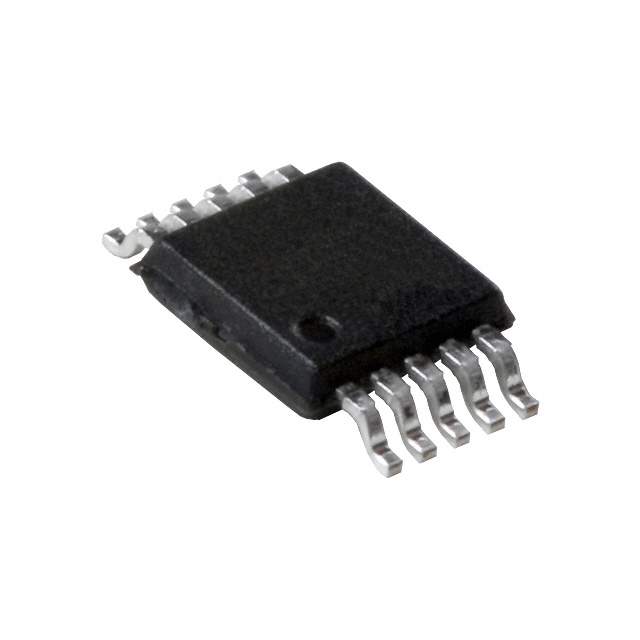

The PCA9633DP2 from NXP Semiconductors is a highly efficient, 4-channel I2C-bus LED driver designed to provide flexible lighting solutions and power management for a wide range of applications. It is an ideal component for LED color mixing, back-lighting LCD displays, and general purpose LED illumination tasks.

Key Features

  • 4 LED Drivers: Each of the four output channels can be independently controlled, allowing precise control over brightness and color mixing.
  • I2C Interface: The device is equipped with an I2C-bus interface, supporting 1 MHz Fast-mode Plus, ensuring easy integration with most microcontrollers and the ability to cascade multiple devices on the same bus.
  • 256-Step Brightness Control: Each channel has a 256-step PWM brightness control, enabling smooth and fine-grained dimming capabilities.
  • Group Dimming/Blending: The PCA9633DP2 also supports group dimming and blinking that can be programmed separately from the individual LED brightness levels, providing additional flexibility.

Applications

  • Status Indication
  • RGB or RGBA LED Color Mixing
  • Backlighting for LCD Displays
  • Keypad Backlighting for Mobile Devices
  • General Purpose LED Illumination

Technical Specifications

The PCA9633DP2 operates on a supply voltage range of 2.3V to 5.5V, making it suitable for both 3.3V and 5V systems. Its low standby current makes it an excellent choice for battery-powered applications where power conservation is critical. The device comes in a small 10-pin TSSOP package, which is ideal for space-constrained applications.

Design Support

NXP offers comprehensive design support for the PCA9633DP2, including detailed datasheets, application notes, and reference designs to streamline the development process and help designers leverage the full potential of this LED driver.
