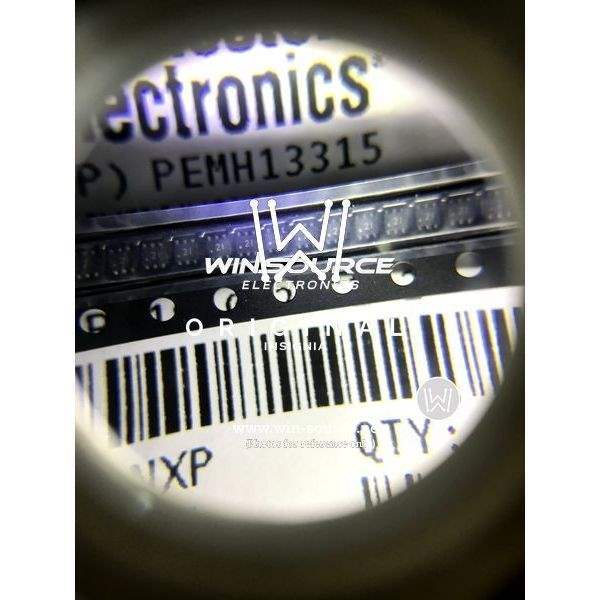

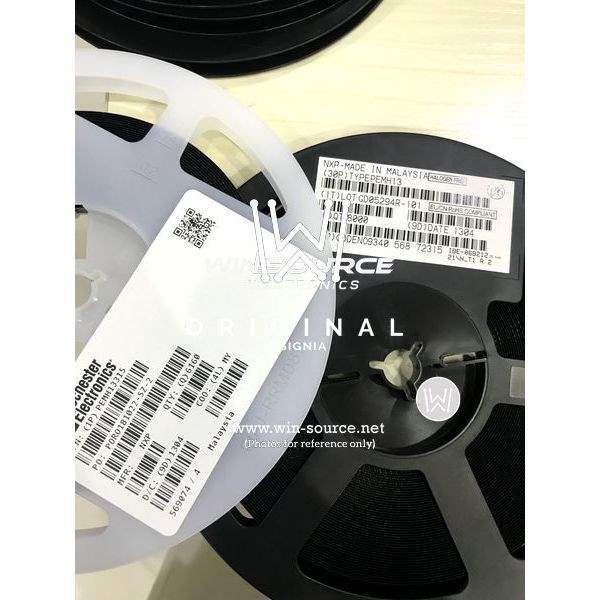

The PEMH13 is a high-performance, dual NPN-PNP bipolar transistor housed in a small Surface-Mounted Device (SMD) package, specifically designed by NXP Semiconductors to meet the rigorous demands of modern electronic circuits. This transistor is well-suited for applications that require switching and amplification, making it an ideal choice for a wide range of electronic devices.

Key Features

• Dual Configuration: The PEMH13 features a complementary NPN-PNP configuration, allowing for flexibility in various circuit designs and applications.
• High Current Capacity: With a continuous collector current rating of 100 mA for each transistor, the PEMH13 can handle moderate current loads efficiently.
• Low Voltage Operation: It operates at low voltages, with a maximum VCEO of 50V for the NPN transistor and -50V for the PNP transistor, making it suitable for low-power circuits.
• High-Speed Switching: The device is capable of high-speed switching, which is essential for applications requiring quick response times.
• Small SMD Package: The SOT-666 package is incredibly space-efficient, making the PEMH13 a perfect choice for compact circuit designs where board space is at a premium.
• Integrated Resistors: This device includes integrated base-emitter resistors, simplifying circuit design and reducing component count.

Applications

The versatility of the PEMH13 allows it to be used in a variety of applications, including but not limited to:

• General-purpose switching and amplification
• Driver stages in audio amplifiers
• Signal processing
• Power management circuits
• Control systems

Quality and Reliability

NXP Semiconductors is renowned for its commitment to quality and reliability. The PEMH13 is manufactured with high-quality materials and is subjected to rigorous testing to ensure it meets the stringent standards expected from NXP products. With its robust construction and proven performance, the PEMH13 is a reliable component for any electronic project or commercial product.
