Product Overview: NXP PESD5V0L2BT

The NXP PESD5V0L2BT is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) damages. This robust component is part of NXP's extensive range of ESD protection devices, which are engineered to provide reliable protection for electronic circuits against the sudden and extreme voltage spikes typically caused by ESD events.

Key Features

• Low Clamping Voltage: The PESD5V0L2BT offers a very low clamping voltage, which is essential for protecting sensitive components in the circuit.
• High ESD Protection Level: With its capability to withstand ESD discharges up to 30 kV (contact discharge) and 30 kV (air discharge) as per the IEC 61000-4-2 standard, it ensures a high level of protection for your devices.
• Low Capacitance: The device features ultra-low capacitance, making it suitable for high-speed data lines without compromising signal integrity.

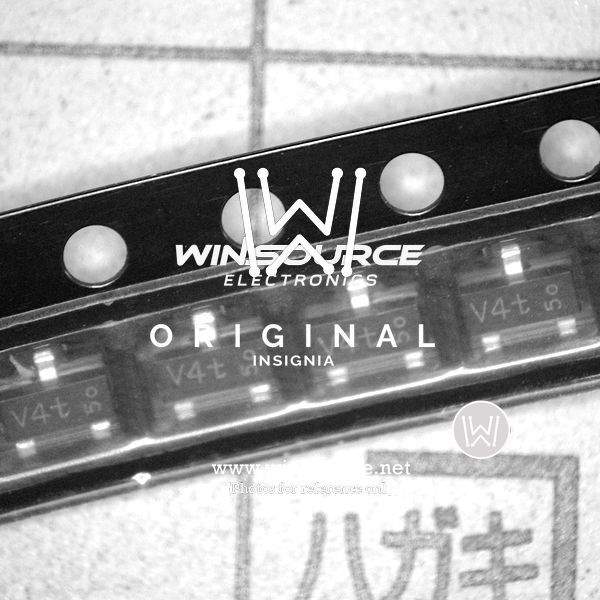

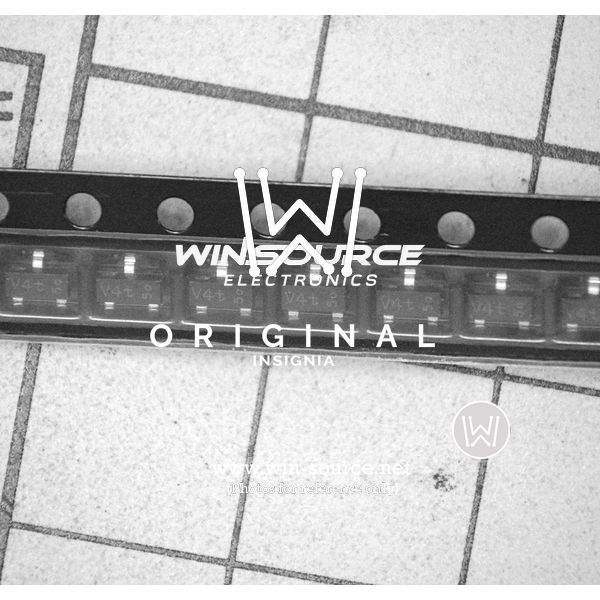

• Small Package: The PESD5V0L2BT comes in a small SOT23 package, which is ideal for space-constrained applications.
• Bi-directional Protection: It provides bi-directional ESD protection, ensuring that both lines are secured from ESD strikes.

Applications

Due to its high-speed data line protection capabilities, the NXP PESD5V0L2BT is an excellent choice for a wide variety of applications, including:

• USB 2.0 power and data line protection
• HDMI and other high-speed data interfaces
• Portable electronics such as smartphones and tablets
• Computing devices like laptops and desktops
• Consumer electronics, including set-top boxes and gaming consoles

Why Choose NXP PESD5V0L2BT?

Choosing the NXP PESD5V0L2BT for your design ensures that your devices are not only protected from the catastrophic effects of ESD but also benefit from the high-quality and performance standards synonymous with NXP Semiconductors. The low capacitance and clamping voltage features enable it to support high-speed data lines effectively. Additionally, its compact form factor allows it to be easily integrated into space-sensitive designs without compromising on protection.

Overall, the NXP PESD5V0L2BT is an indispensable component for any design requiring robust ESD protection, ensuring that your products operate reliably and have a longer lifespan.
