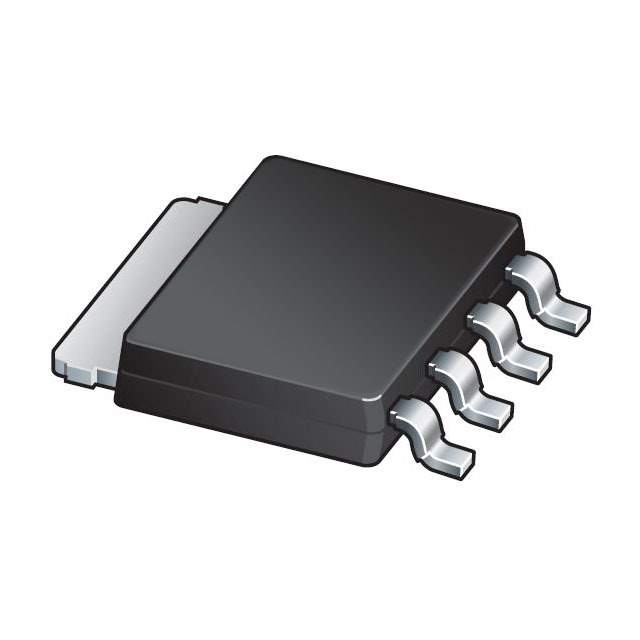

The NXP PH4330L is a high-performance, low-voltage power MOSFET designed to meet the rigorous demands of modern electronic circuits. This device is part of NXP's acclaimed Power MOSFET portfolio and is engineered to deliver efficient power management and conversion in a compact form factor.

Key Features

• Low On-Resistance: The PH4330L features an extremely low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and improves overall efficiency.
• High-Speed Switching: With its fast switching capabilities, this MOSFET is ideal for high-frequency applications, ensuring minimal switching losses and better performance in power conversion circuits.
• Low Threshold Voltage: The device operates at low gate threshold voltage, enabling it to be driven by low-voltage control signals and making it suitable for battery-powered applications.
• Robust Thermal Performance: The PH4330L boasts excellent thermal characteristics, ensuring reliable operation even under high temperature conditions.

Applications

The versatility of the PH4330L allows it to be used in a wide range of applications, including:

• DC/DC converters
• Power management systems
• Battery-powered devices
• Motor control circuits
• Switching regulators
• LED lighting solutions

Product Specifications

The PH4330L is characterized by its outstanding electrical properties and robust package design. It features:

• Drain-source voltage (V<sub>DSS) up to 30V
• Continuous drain current (I<sub>D) of up to 100A
• Low gate charge (Q<sub>g) for efficient switching
• Surface-mount package for easy integration into circuit designs

In conclusion, the NXP PH4330L is a highly reliable and efficient solution for designers seeking to enhance the performance of their power management systems. Its low on-resistance, high-speed switching, and robust thermal performance make it an excellent choice for a multitude of applications that require precise and efficient power control.
