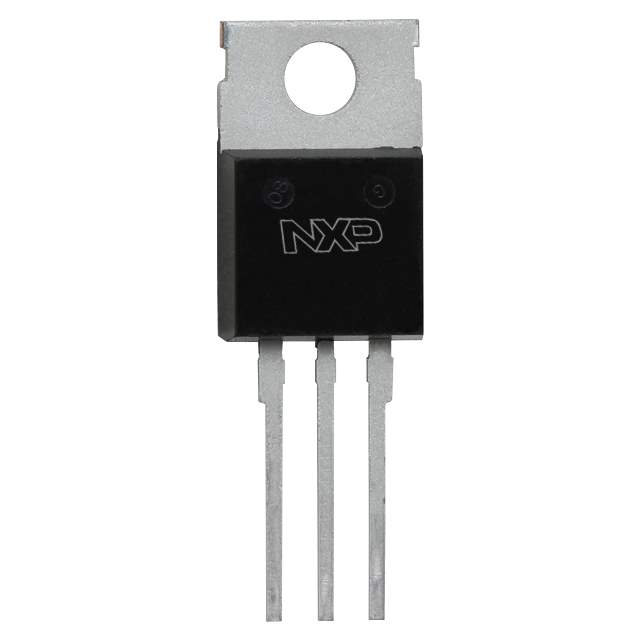

The NXP PHP47NQ10T is a high-performance TrenchMOS™ logic level FET designed to deliver efficient power management and conversion. This MOSFET is an ideal choice for a variety of applications, including DC-DC converters, motor drives, and other high-speed switching applications.

Key Features:

• Low Threshold Voltage: The device is equipped with a logic level threshold voltage, ensuring compatibility with low-voltage drive signals and reducing the need for level-shifting circuitry.
• High Efficiency: With its TrenchMOS technology, the PHP47NQ10T offers reduced on-state resistance (R<sub>DS(on)), leading to lower conduction losses and improved overall efficiency.
• High-Speed Switching: The fast switching speed of the PHP47NQ10T minimizes transition losses and is suitable for high-frequency applications.
• Robust Thermal Performance: The MOSFET is encapsulated in a TO-220 package, known for its excellent thermal characteristics, ensuring reliable operation even at higher temperatures.
• Enhanced Durability: Built to withstand high energy pulses in the avalanche and commutation modes, this device offers enhanced ruggedness.

Electrical Characteristics:

• Drain-Source Voltage (V<sub>DSS): 100V
• Continuous Drain Current (I<sub>D): 47A
• Power Dissipation (P<sub>D): 160W
• Gate-Source Voltage (V<sub>GS): ±20V

Applications:

The PHP47NQ10T is versatile and can be used in a range of applications. Its high current and voltage capabilities make it suitable for power supply systems, while its fast switching performance is ideal for use in DC-DC converters, power inverters, and motor control circuits. Additionally, its logic level gate drive enables direct interfacing with microcontrollers, making it a convenient choice for embedded systems and IoT devices.

Conclusion:

The NXP PHP47NQ10T is a robust and efficient solution for modern electronic designs requiring high-performance power switching. Its combination of high-speed operation, logic level compatibility, and durable construction make it a reliable and versatile component for engineers and designers across various industries.
