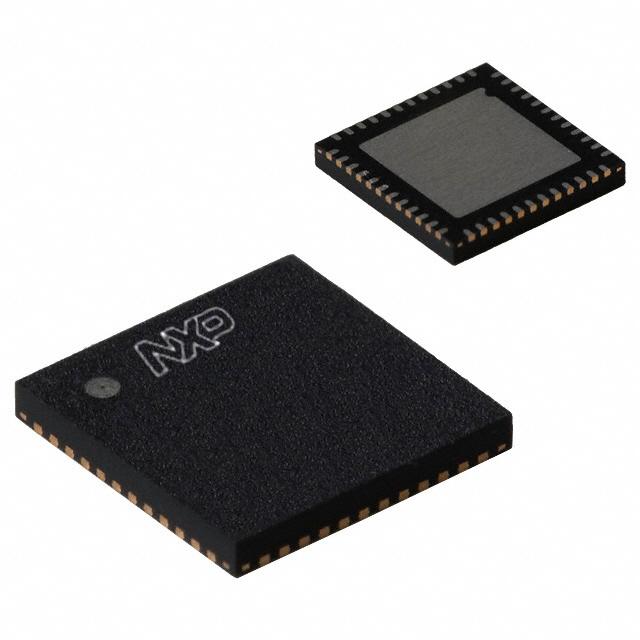

The PTN3360ABS,518 is a cutting-edge interface IC product from NXP Semiconductors designed to bridge the gap between legacy video display interfaces and the newer, high-speed digital interfaces. This product is specifically engineered to facilitate the connection between DisplayPort signals and LVDS (Low-Voltage Differential Signaling) display panels.

Key Features

• DisplayPort to LVDS Bridging: The PTN3360ABS,518 seamlessly converts DisplayPort input into LVDS output, enabling the use of modern video sources with traditional LVDS displays.
• High-Resolution Support: It supports high-resolution video, ensuring that it can handle the demands of contemporary display applications.
• EDID Support: The device has an integrated Extended Display Identification Data (EDID) management that allows for automatic display configuration, simplifying the setup process.
• Low Power Consumption: Designed with power efficiency in mind, the PTN3360ABS,518 minimizes power usage, making it ideal for portable and battery-powered applications.

Applications

The versatility of the PTN3360ABS,518 makes it suitable for a wide range of applications, including:

• Notebook and desktop computers
• Docking stations
• Video adapters and converters
• Industrial displays
• Embedded systems

Product Specifications

Parameter Value Manufacturer NXP Semiconductors Part Number PTN3360ABS,518 Package / Case HVQFN-56 Operating Temperature -40°C to +85°C Supply Voltage 3.3V

With its robust design and advanced features, the PTN3360ABS,518 from NXP Semiconductors is a highly reliable solution for bridging DisplayPort to LVDS, ensuring compatibility across a range of display technologies.
