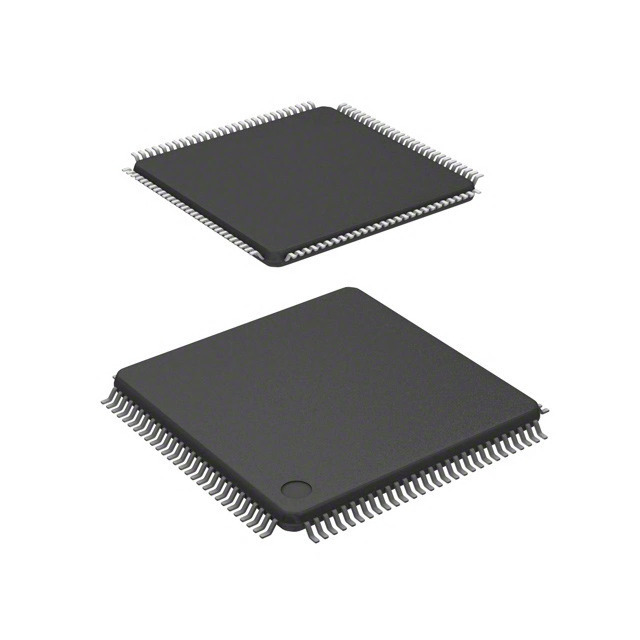

Introducing the NXP S912XEG384F0VAL Microcontroller

The NXP S912XEG384F0VAL is a high-performance microcontroller tailored for advanced automotive and industrial applications. This product is part of the S12XE family of 16-bit microcontrollers, which are renowned for their exceptional reliability and robust feature set. With a focus on delivering top-tier processing capabilities and a suite of integrated functionalities, the S912XEG384F0VAL is designed to meet the stringent requirements of modern embedded systems.

Key Features

• Advanced CPU Core: At the heart of the S912XEG384F0VAL lies an HCS12X CPU core, which operates at a frequency of up to 50MHz, providing the computational power necessary to handle complex tasks efficiently.
• Memory Capacity: The device comes equipped with 384 KB of Flash memory and 32 KB of RAM, offering ample storage for application code and data.
• Enhanced Timing Systems: A range of timing features such as multiple 16-bit timers, an 8-channel pulse width modulator (PWM), and an enhanced capture/compare timer module ensure precise control for a variety of time-critical operations.
• Robust I/O Capabilities: With 59 general-purpose input/output (GPIO) pins, the microcontroller provides flexible interfacing options, making it suitable for a diverse range of applications.
• Integrated Peripherals: The S912XEG384F0VAL includes a wealth of on-chip peripherals, including a CAN module for networking applications, an SPI for high-speed serial data transfer, and an I2C module for multi-master communication.
• Reliability and Safety: The microcontroller integrates features aimed at achieving high levels of system integrity, such as a Memory Protection Unit (MPU), Error Correction Code (ECC) on the Flash memory, and a watchdog timer with a clock monitor.
• Low Power Modes: Multiple power-saving modes are available to reduce energy consumption during idle periods, which is critical for battery-operated and energy-conscious designs.

Applications

The versatility of the NXP S912XEG384F0VAL makes it an ideal choice for a wide array of applications, including automotive control systems, factory automation, robotics, and other embedded control systems that demand high reliability and performance.

With its robust set of features and capabilities, the NXP S912XEG384F0VAL microcontroller stands out as a powerful and dependable option for designers and engineers looking to push the boundaries of what's possible in their embedded applications.
