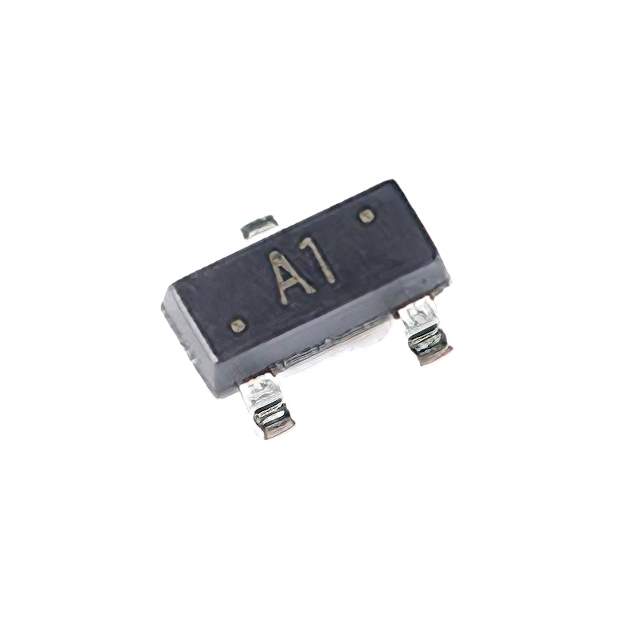

Product Overview: NXP SI2301A P-Channel MOSFET

The SI2301A from NXP Semiconductors is a high-performance, P-channel enhancement mode field-effect transistor (MOSFET) designed for power management applications in a compact, industry-standard SOT-23 package. This device is particularly suitable for portable and battery-powered devices due to its low on-resistance and excellent switching characteristics.

Key Features

• Low Threshold Voltage: The SI2301A features a low gate threshold voltage, making it ideal for low voltage applications where efficient control of power is essential.
• High Power Efficiency: With its low on-resistance, the SI2301A minimizes power loss during operation, contributing to the overall efficiency of the system it is integrated into.
• Fast Switching Speed: The fast switching speed of this MOSFET is beneficial for high-frequency applications, ensuring responsive performance and reduced switching losses.
• Thermal Performance: Engineered for optimal thermal performance, the SI2301A can handle continuous high currents while maintaining a stable operating temperature.

Applications

The versatility of the SI2301A allows it to be used in a wide range of applications, including but not limited to:

• Power Management Circuits
• Load Switching
• Battery Protection
• DC-to-DC Converters
• Portable Devices

Technical Specifications

Parameter Value Drain-Source Voltage (V<sub>DS) -20 V Gate-Source Voltage (V<sub>GS) ±8 V Continuous Drain Current (I<sub>D) -3.1 A Power Dissipation (P<sub>D) 1.25 W On-Resistance (R<sub>DS(on)) 0.045 Ω

With its robust performance and reliability, the NXP SI2301A P-Channel MOSFET is an excellent choice for designers looking to improve power efficiency and extend battery life in their applications.
