Product Overview: SPC5566MZP80R by NXP

The SPC5566MZP80R is a cutting-edge microcontroller unit (MCU) produced by NXP Semiconductors, a leader in automotive and secure connectivity solutions. This high-performance MCU is part of the MPC55xx/SPC56x family, designed to meet the rigorous demands of advanced automotive applications such as engine management, transmission control, and advanced driver-assistance systems (ADAS).

Key Features

• Core: The SPC5566MZP80R is built around the e200z6 Power Architecture core, which operates at a speed of up to 80 MHz, delivering the computational power necessary for complex automotive applications.
• Memory: It comes with an ample memory configuration, featuring 1 MB of flash memory and 64 KB of RAM, allowing for robust program storage and efficient data processing.
• Communication Interfaces: This MCU is equipped with a variety of communication interfaces, including CAN, LIN, and FlexRay, providing versatile options for in-vehicle networking.
• Advanced Timer: The inclusion of a modular event timer system enables precise timing and control for a wide range of automotive applications.
• Analog-to-Digital Converter (ADC): The integrated 12-bit ADC with multiple channels ensures accurate analog signal conversion, crucial for sensor data acquisition.
• Temperature Range: Designed to operate reliably in extreme conditions, the SPC5566MZP80R can function within a temperature range of -40°C to 125°C, making it ideal for under-the-hood applications.

Reliability and Safety

The SPC5566MZP80R is engineered with a focus on reliability and safety, incorporating features like error correction code (ECC) on both flash and RAM, and a built-in self-test (BIST) for the CPU. These features ensure that the MCU can detect and correct errors, enhancing the safety and dependability of automotive systems.

Package and Support

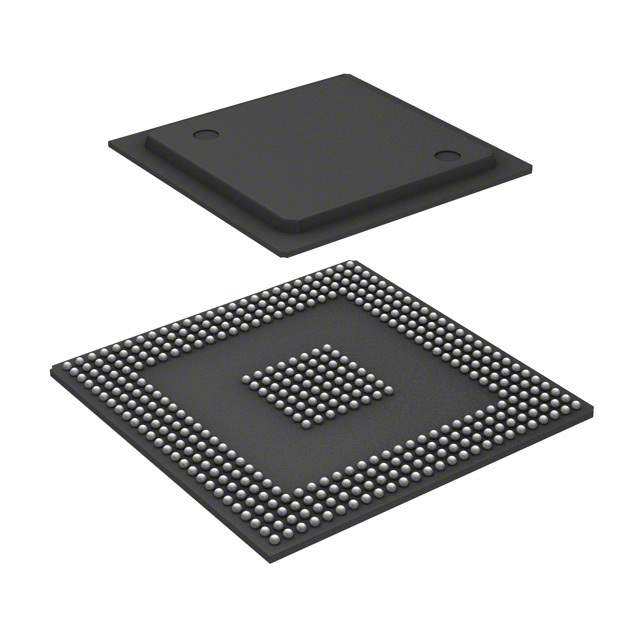

This MCU is available in a 176-pin MAPBGA package, which allows for a compact design with a high level of integration. NXP provides comprehensive support for the SPC5566MZP80R, including development tools, software libraries, and reference designs, to facilitate rapid development and deployment in automotive systems.
