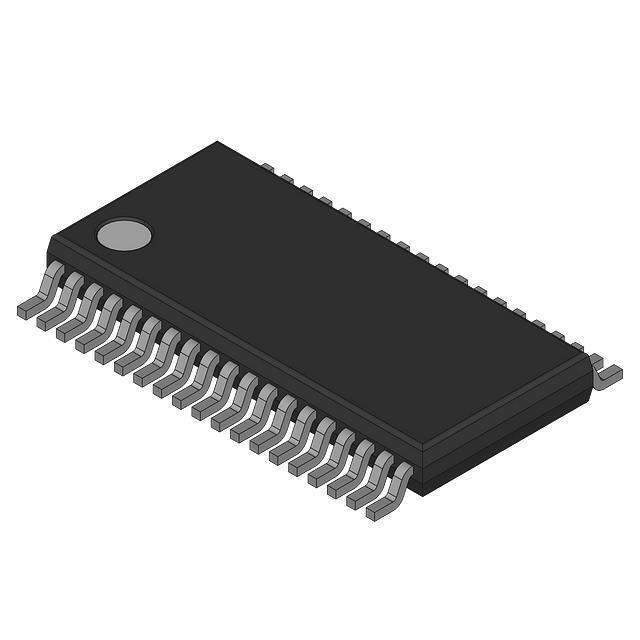

The NXP TDA6650ATT/C3 is a high-performance integrated circuit designed for advanced television signal processing applications. This versatile IC is part of NXP's acclaimed line of electronic components that are widely recognized for their reliability, efficiency, and cutting-edge technology.

Key Features

• Mixer/Oscillator: The TDA6650ATT/C3 includes a high-quality mixer/oscillator module, providing excellent frequency conversion with minimal signal distortion.
• AGC Function: The automatic gain control (AGC) feature ensures consistent signal strength by automatically adjusting the amplifier gain to compensate for varying input signal levels.
• IF Amplification: Intermediate frequency (IF) amplification is optimized for superior signal clarity, making it ideal for television receivers and similar applications.
• Integrated PLL: An integrated phase-locked loop (PLL) circuit offers precise frequency synthesis, which is crucial for tuning and demodulation processes.
• Low Noise Figure: Designed with a low noise figure, the TDA6650ATT/C3 ensures a high signal-to-noise ratio, resulting in clearer audio and video output.

Applications

The TDA6650ATT/C3 is primarily utilized in television signal processing systems, such as:

• Television receivers
• Cable TV set-top boxes
• Terrestrial broadcast receivers
• Satellite receivers

Technical Specifications

The TDA6650ATT/C3 operates within a specific set of technical parameters:

• Supply Voltage: Typically requires a 5V power supply.
• Operating Temperature: Guaranteed performance over a broad temperature range.
• Package: Housed in a compact package, it is suitable for space-constrained applications.

Quality and Reliability

NXP is committed to delivering high-quality products. The TDA6650ATT/C3 is manufactured under strict quality control measures to ensure that it meets the industry's highest standards for performance and reliability. Whether for consumer electronics or professional broadcasting equipment, this IC from NXP stands as a testament to the company's dedication to innovation and excellence in the field of signal processing technology.
