The NXP TDA8589AJ is a high-performance, integrated quad Bridge-Tied Load (BTL) audio amplifier designed for car radio applications. It is a part of NXP's robust portfolio of automotive-grade audio solutions that cater to the increasing demand for high-fidelity sound in the automotive environment.

Key Features

• Output Power: Capable of delivering up to 4 x 50W of output power, it ensures a powerful audio performance suitable for in-car entertainment systems.
• Audio Quality: The TDA8589AJ provides excellent sound quality with low distortion, making it ideal for audiophiles seeking a superior listening experience in their vehicles.
• Flexibility: This IC can be used in various configurations, allowing for flexibility in the design of the audio system, whether it is a simple stereo setup or a more complex multi-channel system.
• Protection Features: It includes a range of protection features such as short-circuit detection, overtemperature protection, and under voltage lockout, ensuring the longevity and reliability of the amplifier.
• I2C-Bus Control: The amplifier can be controlled via the I2C-bus, allowing for easy integration with microcontrollers and other digital systems within the car's audio setup.

Applications

The TDA8589AJ is primarily used in automotive audio systems but can also be found in other applications that require high-quality audio amplification such as multimedia systems and home audio setups.

Technical Specifications

• Supply Voltage: Typically operates at a supply voltage range from 6V to 18V, making it compatible with most car electrical systems.
• Load Impedance: Optimized for 4-ohm speakers, the most common impedance in car audio systems.

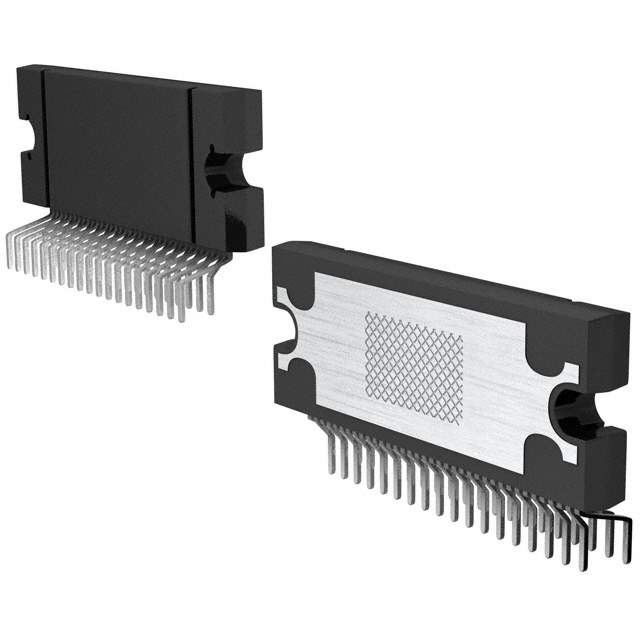

• Package: Housed in a DBS27P package, which is suitable for surface-mounted technology (SMT) and ensures efficient heat dissipation.

Overall, the NXP TDA8589AJ stands out as a dependable and high-quality audio amplifier IC that meets the stringent requirements of automotive audio applications, providing both power and performance to enhance the in-car listening experience.
