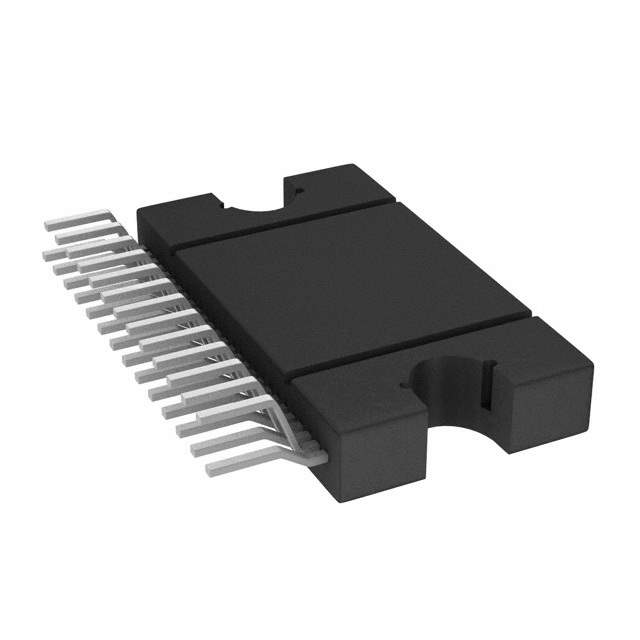

The TDA8594J/N1 is a high-quality audio power amplifier designed and manufactured by NXP Semiconductors, a leader in the industry known for their innovative and reliable products. This particular model is part of the TDA859x family and is specifically engineered to deliver exceptional sound quality and performance for automotive audio applications.

Key Features

• High Output Power: The TDA8594J/N1 is capable of delivering a high output power, ensuring loud and clear sound reproduction without distortion, even at high volumes.
• Quad BTL Configuration: It features a quad 'Bridge Tied Load' (BTL) configuration that allows for direct drive of the speaker, reducing the need for external components and simplifying the overall design of the audio system.
• Low Distortion: The amplifier is designed to produce a low level of distortion, which results in a cleaner, more accurate sound that is true to the original recording.
• Multiple Protection Features: It includes various protection features such as short-circuit protection, thermal protection, and load dump protection, ensuring the longevity and reliability of both the amplifier and the speakers it drives.
• I2C-bus Control: The TDA8594J/N1 supports I2C-bus control interface, allowing for easy integration into modern automotive systems with digital control.

Applications

The TDA8594J/N1 is primarily used in automotive audio systems, such as car radios and sound systems, but its high-quality audio reproduction capabilities make it suitable for a range of other applications that require reliable and high-fidelity audio amplification.

Technical Specifications

• Supply Voltage: Typically designed to operate at a supply voltage that is suitable for automotive environments.
• Output Power: Delivers a high output power per channel, which can vary depending on the supply voltage and load conditions.
• Load Impedance: Optimized to work with a range of speaker impedances, typical for car audio systems.
• Operating Temperature: Engineered to function reliably over a wide range of temperatures, which is crucial for automotive applications.

With its robust design and advanced features, the TDA8594J/N1 by NXP stands out as a superior choice for automotive audio amplification, offering both power and precision to deliver an exceptional audio experience.
