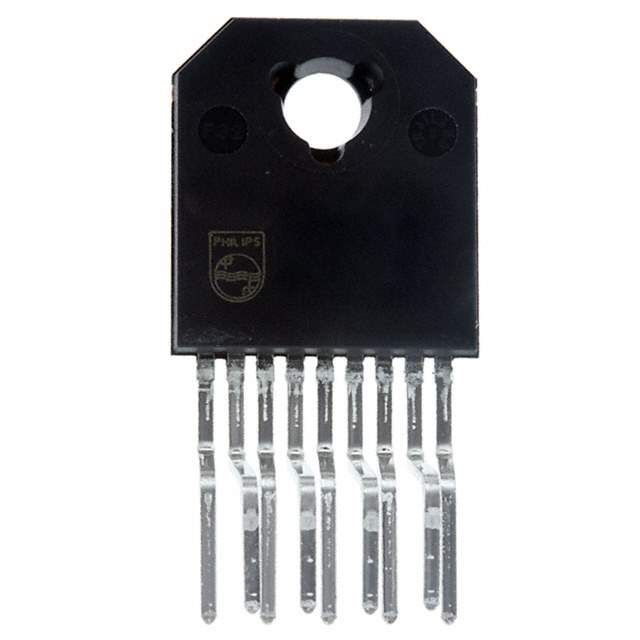

The TFA9842AJ/N1 is a high-efficiency, dual-channel audio amplifier produced by NXP Semiconductors. This integrated circuit (IC) is designed to deliver a powerful audio experience with exceptional sound quality and energy efficiency, making it an ideal choice for a wide range of consumer electronics, including televisions, soundbars, portable speakers, and desktop systems.

Key Features

• Output Power: The TFA9842AJ/N1 can deliver up to 2x 20 W of output power into a 4-ohm load, with a supply voltage of 18 V.
• High Efficiency: With its Class-D architecture, the amplifier achieves high efficiency, which reduces energy consumption and heat dissipation, thereby extending the lifespan of the product.
• Multi-Band Dynamic Range Compression (DRC): This feature ensures consistent audio quality at different volume levels by preventing audio distortion during loud passages and maintaining clarity during soft ones.
• Integrated Protection: The TFA9842AJ/N1 comes with built-in protection against overtemperature, short-circuit, and under-voltage conditions, offering reliability and safety in operation.

Technical Specifications

• Supply Voltage: 9.5 V to 18 V
• THD+N: Low total harmonic distortion plus noise (THD+N) ensures high-fidelity audio reproduction.
• Channels: 2 channels (stereo)
• Package: The TFA9842AJ/N1 is available in a HSOP24 package, which is suitable for compact PCB layouts.

Applications

The versatility of the TFA9842AJ/N1 allows it to be used in various applications where audio quality and efficiency are paramount. It is especially well-suited for:

• Flat-panel televisions and monitors
• Soundbar systems
• Wireless speakers
• Active speaker systems
• Home theater systems

With the TFA9842AJ/N1, NXP continues its tradition of delivering high-performance audio solutions that enhance the user experience in consumer electronics. The blend of power, clarity, and advanced features makes this audio amplifier a top choice for designers looking to elevate their audio system designs.
