The NXP TSA5059AT is a cutting-edge frequency synthesizer designed for television applications. It is a highly integrated PLL-based circuit that offers exceptional performance and flexibility for designers of modern TV systems. The TSA5059AT is part of NXP's renowned portfolio of radio frequency (RF) solutions, which are known for their reliability and innovation.

Key Features

• Frequency Range: The device operates over a broad frequency range, making it suitable for a variety of TV standards and applications.
• Low Phase Noise: With its low phase noise characteristics, the TSA5059AT ensures high-quality signal synthesis, which is crucial for superior image and sound quality in TV receivers.
• Programmable Divider: It includes a programmable divider that allows for flexible frequency generation, accommodating a wide range of channel spacing requirements.
• I²C Bus Control: The synthesizer can be controlled via the I²C bus, a popular two-wire serial interface, which simplifies communication and control with microcontrollers.
• Single 5V Supply: The TSA5059AT operates on a single 5V supply voltage, simplifying power management within the TV system.

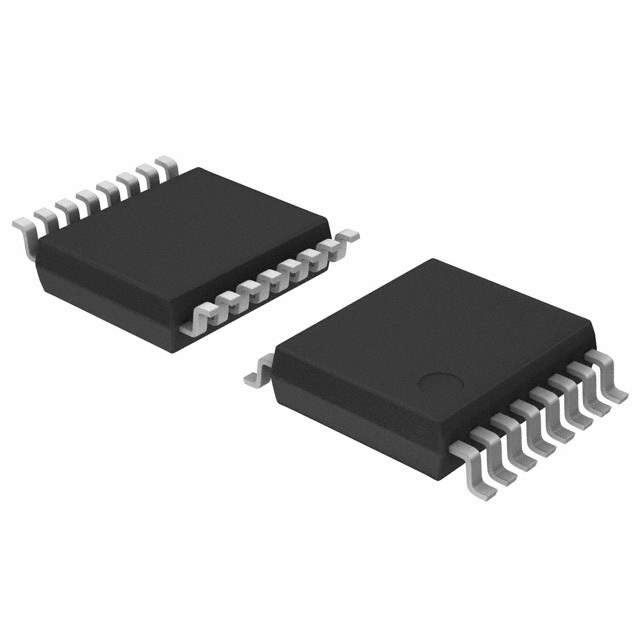

• Compact Package: It is available in a small-footprint package, which is ideal for space-constrained applications.

Applications

The TSA5059AT is primarily used in TV tuners, where precise frequency generation is essential. Its versatility also makes it suitable for other RF applications, including digital satellite receivers, set-top boxes, and professional communication equipment.

Why Choose TSA5059AT?

Designers choose the TSA5059AT for its combination of performance, integration, and ease of use. It is designed to meet the demanding specifications of TV broadcasting, ensuring that viewers receive the best possible audio-visual experience. With its I²C interface, the TSA5059AT is easy to program and integrate into complex systems, while the low power consumption and small package size make it an excellent choice for energy-efficient and compact designs.
