Same model may have multiple batches, images only for reference.

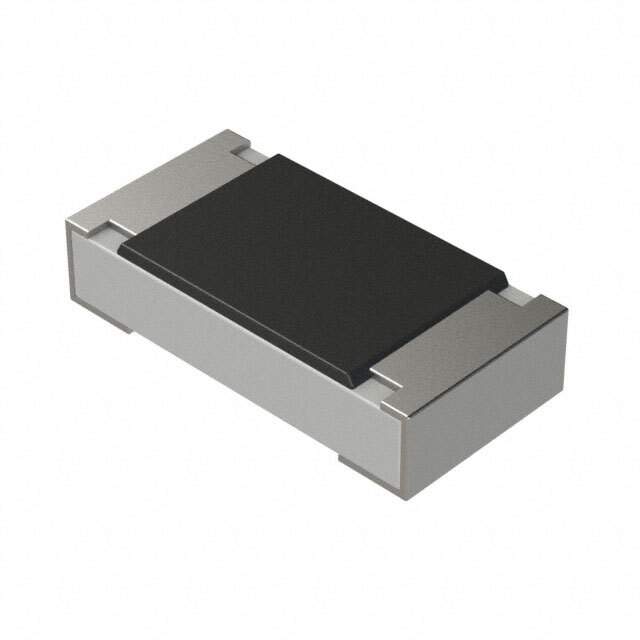

APC0805T10K0Z Real Image
Same model may have multiple batches, images only for reference.

APC0805T10K0Z

Part No APC0805T10K0Z
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description 1/10 WATTS PRECISION CHIP 10 KIL  /  10 kOhms ±0.01% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Ohmite
Series APC
Package Tape & Reel (TR)
Resistance 10 kOhms
Tolerance ±0.01%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Temperature Coefficient ±5ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 273-APC0805T10K0ZTR
Standard Package 5,000
Win Source Part Number 1230999-APC0805T10K0Z
Ultra Librarian 3D Model Ultra Librarian APC0805T10K0Z CAD Model

Description

The APC0805T10K0Z chip resistor from Ohmite is a thin film resistor with a resistance of 10 kOhms and a power rating of 0.1W.

  • Resistance: 10 kOhms
  • Power Rating: 0.1W
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±5ppm/°C
  • Package: Tape and Reel (TR)
  • Standard Package: 5,000
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • RoHS Compliant: Yes
  • Operating Temperature Range: -55°C to 155°C
