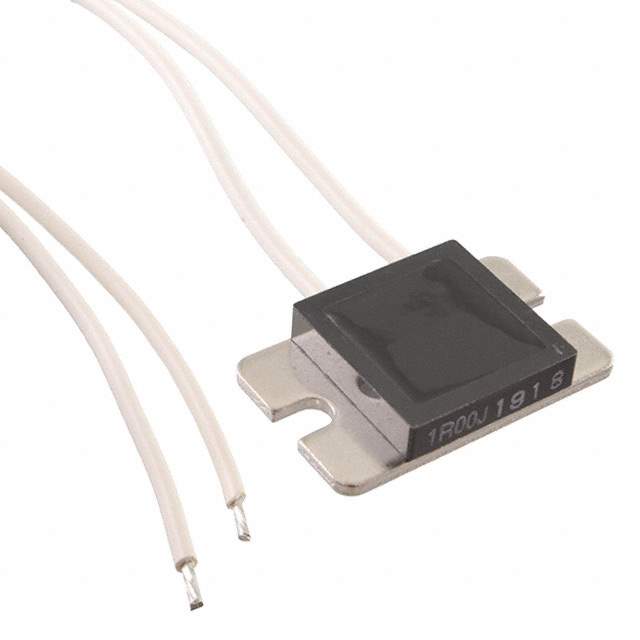

TGHDX5R00JE Real Image
Same model may have multiple batches, images only for reference.

TGHDX5R00JE

Part No TGHDX5R00JE
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description 100W SOT227 5 OHMS 5% / 5 Ohms ±5% 100W Thick Film Chassis Mount Resistor
Datasheet
TGHDX5R00JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series TGHD
Package Tray
Product Status Obsolete
Resistance 5 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Features Current Sense, Non-Inductive
Coating, Housing Type Epoxy Coated
Mounting Feature Flanges
Size / Dimension 1.260" L x 0.748" W (32.00mm x 19.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Lead Style Wire Leads
Package / Case SOT-227-2
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1341344-TGHDX5R00JE
Ultra Librarian 3D Model Ultra Librarian TGHDX5R00JE CAD Model

Description

The Ohmite TGHD series of chassis mount resistors are designed to meet the needs of high power and voltage handling applications.

  • Resistance: 5 Ohms
  • Power Rating: 100W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thick Film
  • Coating: Epoxy
  • Package: SOT-227-2
  • Size: 1.260" L x 0.748" W (32.00mm x 19.00mm)
  • Height: 0.236" (6.00mm)
  • Lead Style: Wire Leads
  • Mounting Feature: Flanges
  • Packaging: Tray
  • Standard Package: 10
The Ohmite TGHD series of chassis mount resistors are obsolete.
