Same model may have multiple batches, images only for reference.

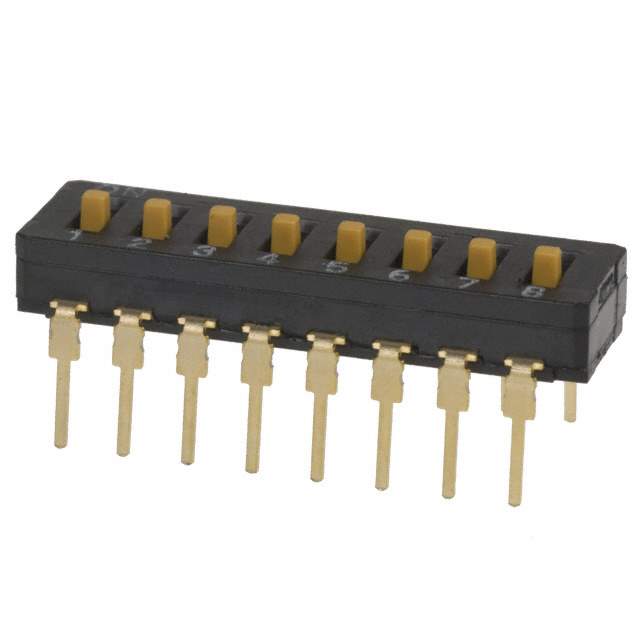

A6D-7100 Real Image
Same model may have multiple batches, images only for reference.

A6D-7100

Part No A6D-7100
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 30MA 30V
Datasheet
A6D-7100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 7
Current Rating 30mA
Voltage Rating 30VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.173" (4.40mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features IP64 - Dust Tight, Water Resistant
Length 0.779" (19.79mm)
Temperature Range - Operating -20°C to 70°C
Electrical Life 2,000 Cycles
Win Source Part Number 1011398-A6D-7100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A6D-7100 CAD Model

Description

The Omron Electronics Inc-EMC Div slide switch with part number 1011398-A6D-7100 is a through-hole switch with 7 positions.

  • Pitch: 0.100" (2.54mm)
  • Termination: PC pins
  • Dust and Water Resistance: IP64
  • Contact Finish: Gold
  • Voltage Rating: 30VDC
  • Current Rating: 30mA
  • Height Above Board: 0.173" (4.40mm)
  • Length: 0.779" (19.79mm)
  • Mechanical Life: 2,000 cycles
  • Actuation: Flush or Recessed
  • Supply and Demand: Limited
