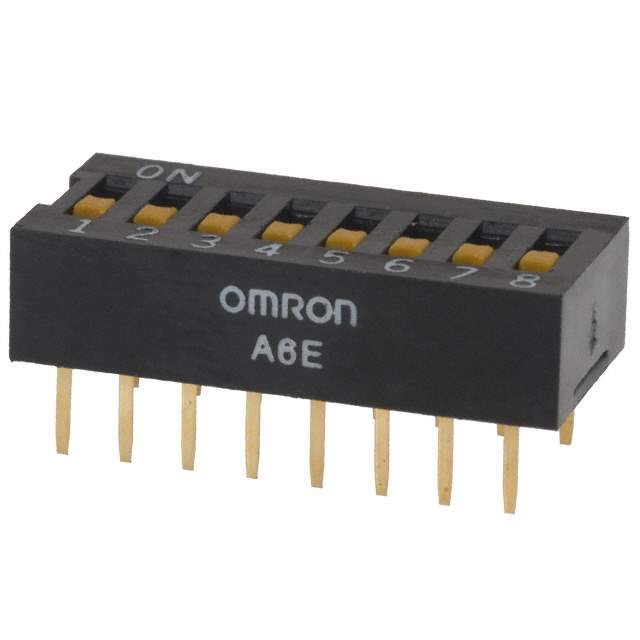

Same model may have multiple batches, images only for reference.

A6E-8101-N

Name: A6E-8101-N
Brand: Omron
SKU: 425806
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	A6E-8101-N
Manufacturer	Omron
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheet	A6E-8101-N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Tube/Rail
Status	Active
Circuit	SPST
Number of Positions	8
Current Rating	25mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Finish	Gold
Height Above Board	0.230" (5.85mm)
Mounting	Through Hole
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	No
Length	0.853" (21.68mm)
Temperature Range - Operating	-20°C to 70°C
Mechanical Life	1,000 Cycles
Electrical Life	1,000 Cycles
Win Source Part Number	1011400-A6E-8101-N
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian A6E-8101-N CAD Model

Alternative Products

Description

The A6E-8101-N from Omron Electronics Inc-EMC Div is a tube/rail packaged switch that has eight positions and a pitch of 0.100 inches (2.54mm).

Switch Type: DIP
Package: Tube/Rail
Positions: 8
Pitch: 0.100 inches (2.54mm)
Termination Style: Full
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating: 25mA
Height Above Board: 0.230 inches (5.85mm)
Length: 0.853 inches (21.68mm)
Mounting Type: Through-Hole
Circuit: SPST
Actuator Type: Slide (Standard)
Electrical Life: 1,000 cycles
Mechanical Life: 1,000 cycles
Actuator Level: Flush, Recessed
Washable: No
Status: Active
Temperature Range: -20°C to 70°C
Supply and Demand Status: Sufficient
