Same model may have multiple batches, images only for reference.

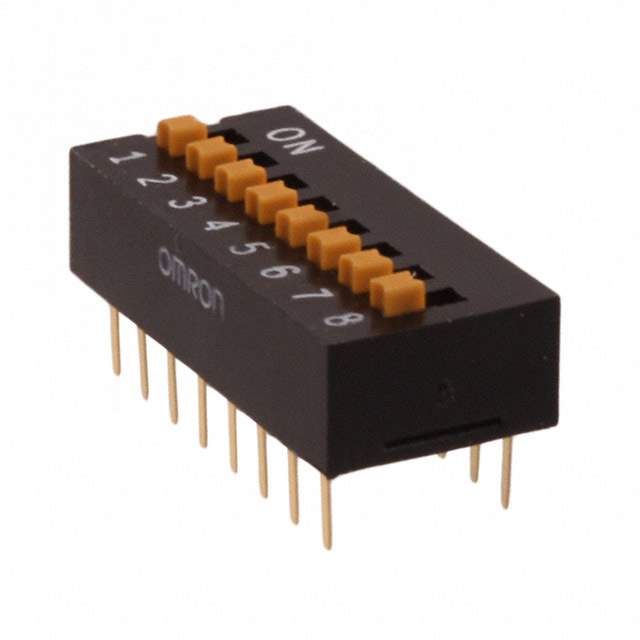

A6E-8104-N Real Image
Same model may have multiple batches, images only for reference.

A6E-8104-N

Part No A6E-8104-N
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.277" (7.05mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 0.853" (21.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 21
MSL Level 1 (Unlimited)
Win Source Part Number 721984-A6E-8104-N
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian A6E-8104-N CAD Model

Description

The Omron A6E-8104-N is a single pole, single throw (SPST) slide switch with 8 positions and a through-hole mounting style. It has a pitch of 0.100" (2.54mm) and a full termination style of PC pin.

  • Contact Finish: Gold
  • Voltage Rating: 24VDC
  • Height Above Board: 0.277" (7.05mm)
  • Length: 0.853" (21.68mm)
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 21
  • MSL Level: 1 (unlimited)
