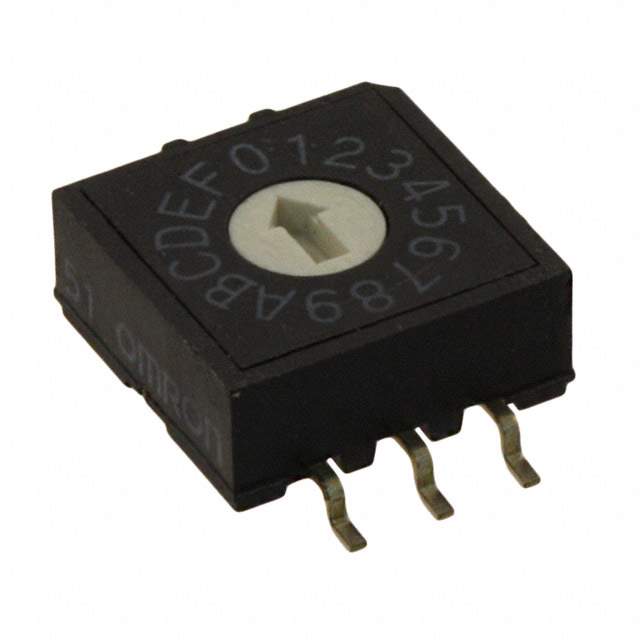

A6RS-161RF-P Real Image
Same model may have multiple batches, images only for reference.

A6RS-161RF-P

Part No A6RS-161RF-P
Manufacturer Omron
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 25MA 24V / Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6RS
Package Tape & Reel
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Height Above Board 0.185" (4.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable No
Temperature Range - Operating -25°C ~ 80°C
Length 0.386" (9.80mm)
Electrical Life 5,000 Steps
Base Product Number A6R
Standard Package 750
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1337126-A6RS-161RF-P
Ultra Librarian 3D Model Ultra Librarian A6RS-161RF-P CAD Model

Description

The Omron A6RS series DIP switch is a Hexadecimal circuit rotary switch with 16 positions.

  • Manufacturer: Omron
  • Series: A6RS
  • Circuit: Hexadecimal
  • Switch Type: Rotary
  • Number of Positions: 16
  • Pitch: 0.100 inches (2.54mm)
  • Termination Style: Gull Wing
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.185 inches (4.70mm)
  • Length: 0.386 inches (9.80mm)
  • Actuator Type: Rotary, Tool
  • Actuator Level: Flush, Recessed
  • Washable: No
  • Mounting Type: Surface Mountable
  • Operating Temperature: -25°C to 80°C
  • Electrical Life: 5,000 Steps
