Same model may have multiple batches, images only for reference.

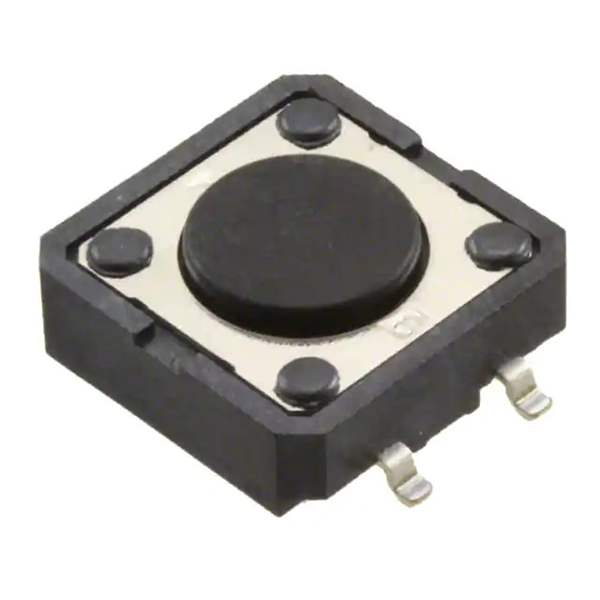

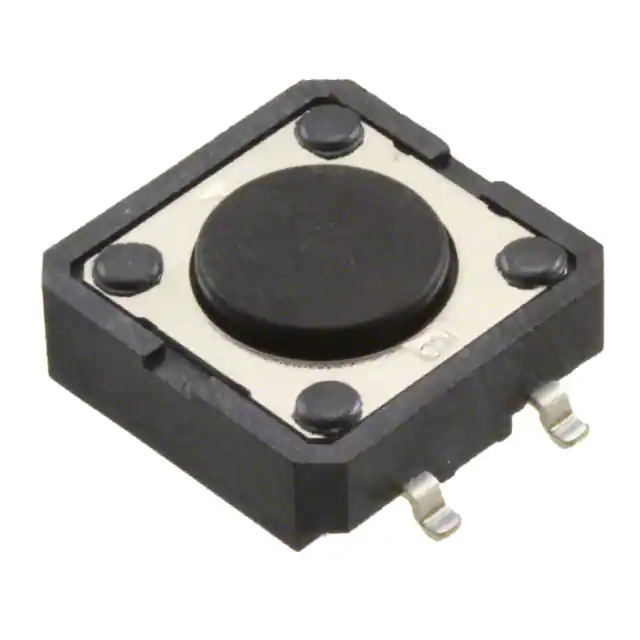

B3FS-4005P

Name: B3FS-4005P
Brand: Omron
SKU: 1356622
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B3FS-4005P
Manufacturer	Omron
Catalog	Tactile Switches
Description	SWITCH TACT SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	B3FS-4005P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Omron Electronics Inc-EMC Div
Series	B3FS-4
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	4.30mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	12.00mm x 12.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-25°C ~ 70°C
Actuator Material	-
Switch Travel	0.25mm
Mechanical Life	1,000,000 Cycles
Base Product Number	B3FS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1356622-B3FS-4005P
Ultra Librarian 3D Model	Ultra Librarian B3FS-4005P CAD Model

Alternative Products

Description

The B3FS-4005P is a tactile switch designed for use in various electronic devices. It is part of the B3FS-4 series by Omron Electronics Inc-EMC Div.

Operating Temperature: -25°C to 70°C
Circuit Configuration: SPST-NO
Switch Function: off-mom
Mounting Type: Surface Mount
Termination Style: Gull Wing
Mechanical Life: 1,000,000 cycles
Contact Rating: 0.05A @ 24VDC
Operating Force: 260gf
Switch Travel: 0.25mm
