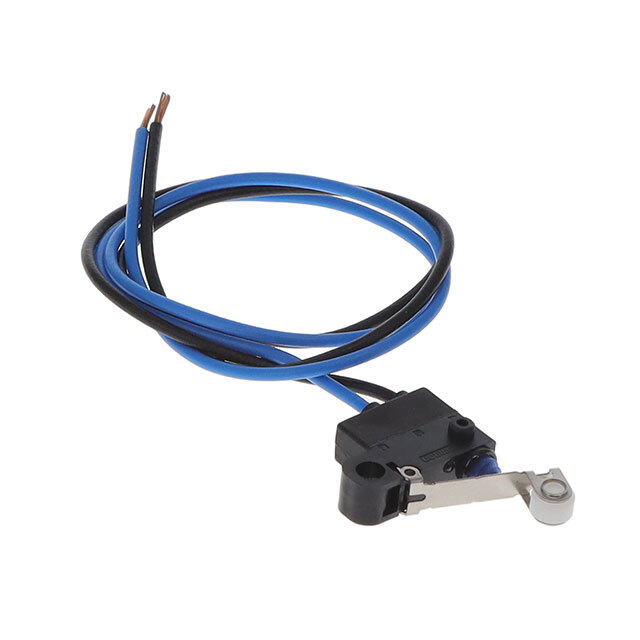

Same model may have multiple batches, images only for reference.
D2JW-01K11 Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D2JW-01K11

Part No D2JW-01K11
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 0.1A 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 82gf
Release Force 16gf
Operating Position 0.330" (8.4mm)
Pretravel 0.252" (6.4mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.055" (1.4mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Temperature Range - Operating -40°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1551775-D2JW-01K11
Ultra Librarian 3D Model Ultra Librarian D2JW-01K11 CAD Model
