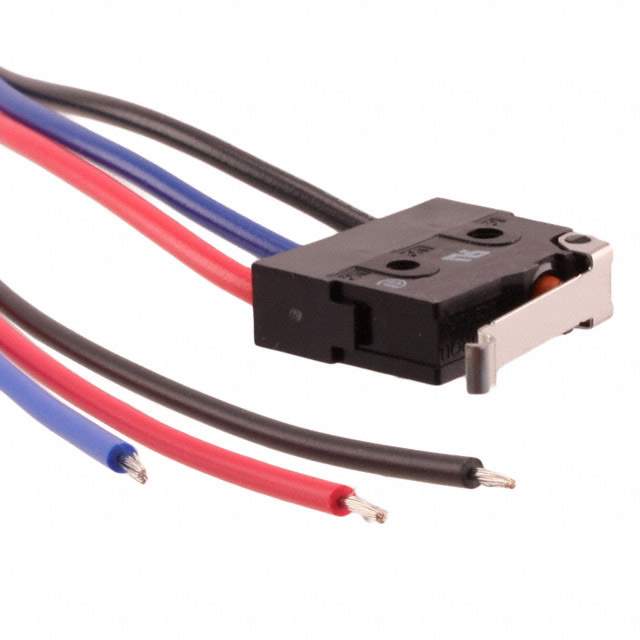

D2SW-3L3M Real Image
Same model may have multiple batches, images only for reference.

D2SW-3L3M

Part No D2SW-3L3M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V  /  Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 60gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2SW-3L3M-ND,D2SW3L3M,2266-D2SW-3L3M,Z11580
Standard Package 200
Win Source Part Number 1000167-D2SW-3L3M
Ultra Librarian 3D Model Ultra Librarian D2SW-3L3M CAD Model

Description

The D2SW series of limit switches from Omron Electronics Inc-EMC Div are designed for industrial automation and control applications. The 1000167-D2SW-3L3M model is a SPDT (single-pole double-throw) switch with an on-mom switch function.

  • Switch Type: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever and Simulated Roller
  • Operating Force: 60gf
  • Release Force: 6.118gf
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 5,000,000 cycles
  • Differential Travel: 0.031 inches (0.8mm)
  • Overtravel: 0.040 inches (1.0mm)
  • Mounting: Chassis Mount
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Voltage Rating: 125VAC and 30VDC
  • Current Rating: 3A (AC/DC)
  • Packaging: Bulk
  • Standard Package: 200 units
  • Manufacturer: Omron Electronics Inc-EMC Div
