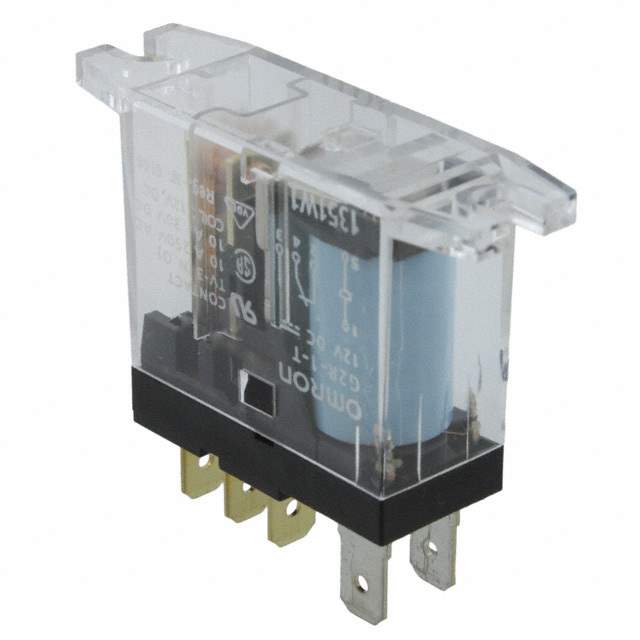

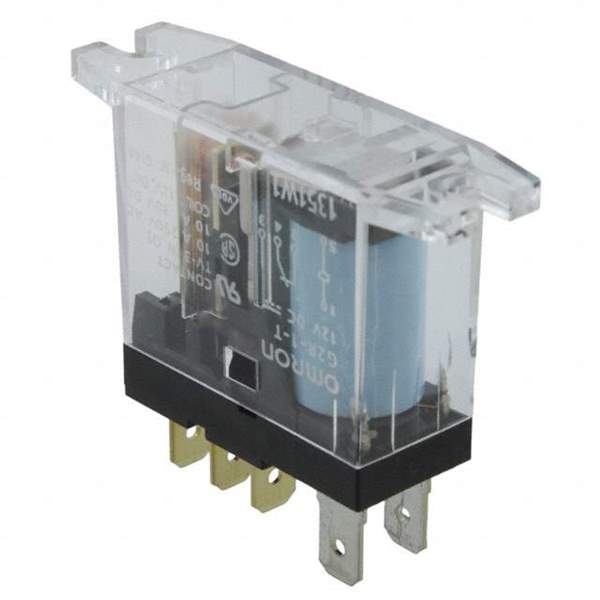

G2R-1-T DC48 Real Image
Same model may have multiple batches, images only for reference.

G2R-1-T DC48

Part No G2R-1-T DC48
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 48V / General Purpose Relay SPDT (1 Form C) 48VDC Coil Chassis Mount
Datasheet
G2R-1-T DC48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series G2R
Package Tray
Mounting Type Chassis Mount
Coil Voltage 48VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 11.5 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187" (4.7mm)
Seal Rating Sealed - Flux Protection
Must Operate Voltage 33.6 VDC
Must Release Voltage 7.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 4.17 kOhms
Base Product Number G2R
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1350696-G2R-1-T DC48
Ultra Librarian 3D Model Ultra Librarian G2R-1-T DC48 CAD Model

Description

The Omron G2R series power relay is a general-purpose relay that can switch a maximum current of 10 A and a maximum voltage of 380VAC, 125VDC.

  • Manufacturer: Omron
  • Series: G2R
  • Type: General Purpose
  • Switching Current: 10 A
  • Switching Voltage: 380VAC, 125VDC (Max)
  • Contact Form: SPDT (Single Pole Double Throw)
  • Coil Voltage: 48VDC
  • Coil Resistance: 4.17 kOhms
  • Coil Current: 11.5 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Seal Rating: Sealed - Flux Protection
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 70°C
  • Application: Power Relays > 2 Amps
