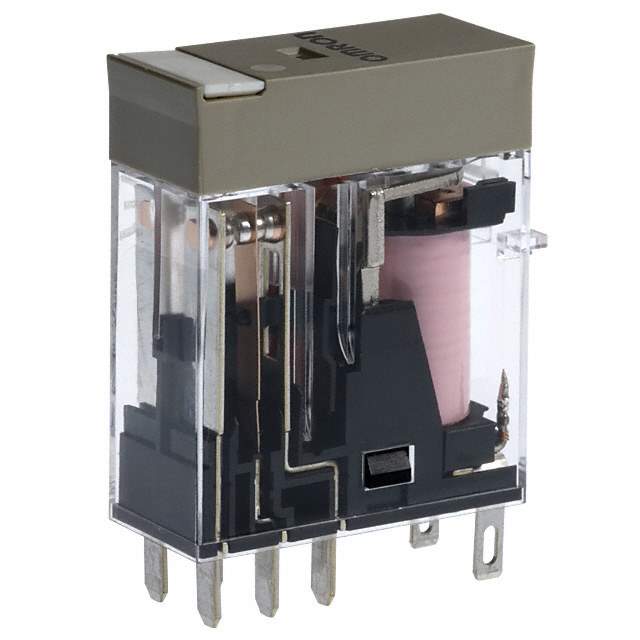

G2R2SNDC24S Real Image
Same model may have multiple batches, images only for reference.

G2R2SNDC24S

Part No G2R2SNDC24S
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Power Relay, DPDT, 5A, Ctrl-V 24DC, 250/30AC/DC, Socket mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 70 °C
Approvals CE, CSA, UL, VDE
Coil Current 21.6 mA
Coil Power 530 mW
Coil Resistance 1.113 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 5 A
Contact Material Cadmium, Silver
Current Rating 5 A
Depth 13 mm
Height 35.5 mm
Lead Free Yes
Length 29 mm
Max Current Rating 5 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 380 V
Max Voltage Rating (DC) 125 V
Min Operating Temperature -40 °C
Mount Plug-In, Socket, Socketable
Number of Contacts 2
Number of Pins 8
Operate Time 15 ms
Packaging Bulk
Power Consumption 360 mW
Power Rating 530 mW
Ratings IP40
REACH SVHC Unknown
Relay Type General Purpose
Release Time 10 ms
RoHS Compliant
Switching Capacity 1.25 kW
Switching Current 5 A
Termination Plug, Solder
Throw Configuration DPDT
Voltage Rating (AC) 380 V
Voltage Rating (DC) 125 V
Width 13 mm
Win Source Part Number 1060153-G2R2SNDC24S
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G2R2SNDC24S CAD Model

Description

The Omron G2R2SNDC24S is a general-purpose non-latching relay with a contact current rating of 5A.

  • Packaging: The packaging of this component is bulk and has a termination of plug, solder.
  • Contact Material: It has a contact material of cadmium, silver and has a length of 29mm.
  • Approvals: The approvals for this component are CE, CSA, UL, VDE and it has an IP40 rating.
  • Coil Resistance: The coil resistance is 1.113 kΩ
  • Coil Current: the coil current is 21.6 mA.
  • Timing: The operate time for this component is 15ms and the release time is 10ms.
  • Alternative: It is an alternative part with cross-reference numbers G2R2SDC24S, G2R-2-SNI DC24(S), G2R-2-SNDI DC24(S), AHN22224N, JW2SN-DC24V, JW2SN-B-DC24V, AHN22124, OMI-SH-224D,594, 1-1393767-5, KUP-11D11-24G2R-2-SN DC24(S), G2R-2-SN DC24(S), G2R-2-SN-DC24(S), G2R-2-SN-DC24S, G2R-2-SNDC24(S), and G2R-2-SNDC24S.
