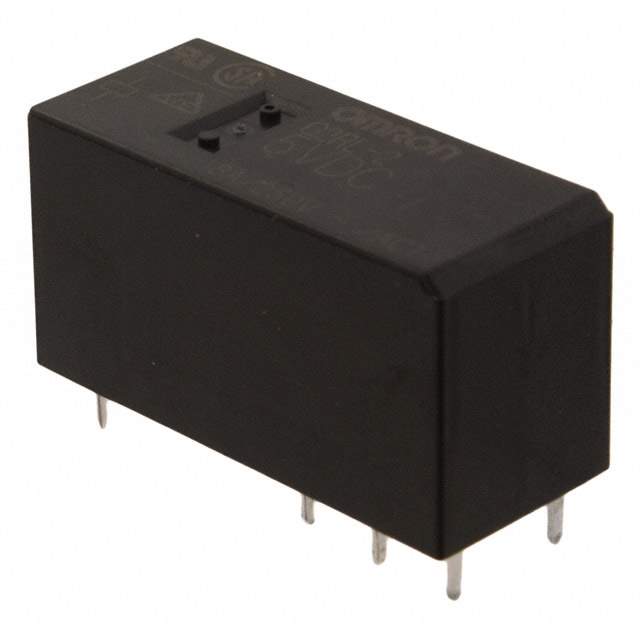

G2RL-2 DC5 Real Image
Same model may have multiple batches, images only for reference.

G2RL-2 DC5

Part No G2RL-2 DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 62.5 Ohms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314714-G2RL-2 DC5
Ultra Librarian 3D Model Ultra Librarian G2RL-2 DC5 CAD Model

Description

The Omron G2RL-2 DC5 power relay is a DPDT (2 Form C) relay that can handle a maximum switching voltage of 440VAC and 300VDC.

  • Relay Type: DPDT (2 Form C)
  • Maximum Switching Voltage: 440VAC and 300VDC
  • Coil Resistance: 62.5 Ohms
  • Coil Voltage: 5VDC
  • Coil Current: 80 mA
  • Contact Rating: 8 A
  • Switching Voltage: 440VAC and 300VDC
  • General Purpose: Yes
  • Latching: Non-latching
  • Seal Rating: Sealed-flux protection
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
