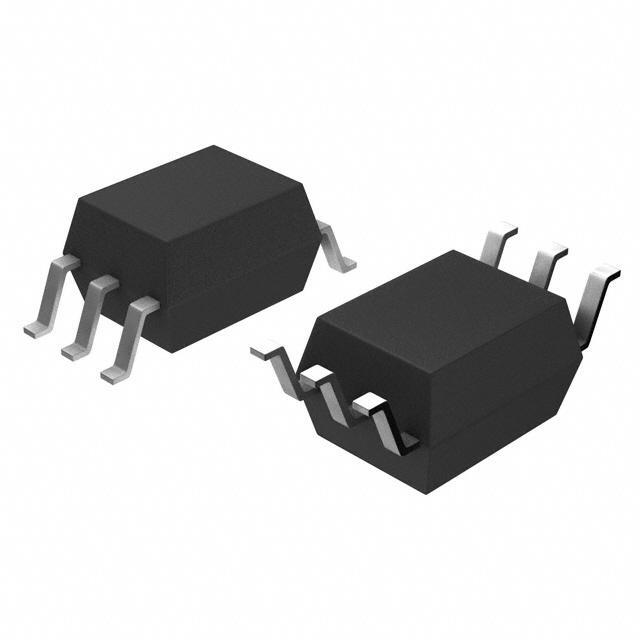

G3VM-21HR(TR) Omron
Same model may have multiple batches, images only for reference.

G3VM-21HR(TR)

Part No G3VM-21HR(TR)
Manufacturer Omron
Catalog Solid State Relays
Description RELAY SSR SPST 2.5A 6-SOP / Solid State Relay 20mA 1.48V DC-IN 2A 20V AC/DC-OUT 6-Pin SOP T/R
Datasheet
G3VM-21HR(TR) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G3VM
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 50 mOhm
Load Current 2.5A
Voltage - Input 1.33VDC
Voltage - Load 0 ~ 20 V
Mounting SMD
Termination Style Gull Wing
Package 6-SOP (0.173", 4.40mm)
Manufacturer Package 6-SOP
Relay Type Relay
Win Source Part Number 774878-G3VM-21HR(TR)
Popularity Medium
Supply and Demand Status Limited
Family Name G3VM-21HR
Introduction Date April 19, 2001
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian G3VM-21HR(TR) CAD Model

Description

The G3VM-21HR(TR) is a Relay from Omron Electronics Inc-EMC Div.

  • Series: G3VM
  • Popularity: Medium
  • Mounting: Gull-wing
  • Package: 6-SOP (0.173", 4.40mm)
  • Voltage Input: 1.33VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • Relay Type: Relay
  • Load Current: 2.5A
  • Voltage Load: 0 ~ 20 V
  • Family Name: G3VM-21HR
  • On-State Resistance (maximum): 50 mOhm
  • ECCN: EAR99
  • Estimated EOL Date: 2028
