Same model may have multiple batches, images only for reference.

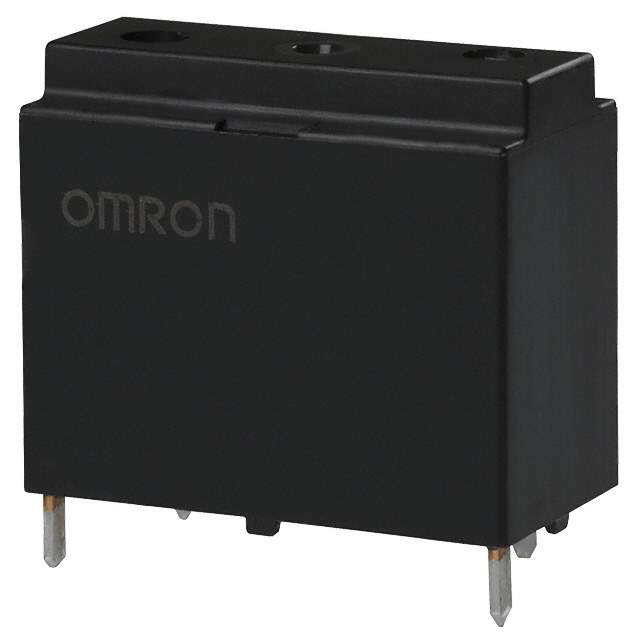

G4A-1A-PE DC24 Real Image
Same model may have multiple batches, images only for reference.

G4A-1A-PE DC24

Part No G4A-1A-PE DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 16 Weeks
Features General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Manufacturer Omron
Series G4A
Package Tray
Operating Temperature Range -20°C ~ 60°C
Mounting Through Hole
Family Name G4A
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Other Part Number G4A 6003E, G4A-1A-P-DC24, G4A-1A-P-E-DC24, G4A1APE24DC, G4A1APEDC24, Z955
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872538-G4A-1A-PE DC24
Ultra Librarian 3D Model Ultra Librarian G4A-1A-PE DC24 CAD Model

Description

The Omron G4A series relay is a general-purpose SPST-NO (1 Form A) relay with a 24VDC coil. Bold the product name (e.g., BAV99S,135 → G4A series relay) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Circuit: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Mounting Type: Through-Hole
  • Packaging: Tray
  • Operating Temperature Range: -20°C to 60°C
  • Series: G4A
  • Category: Relays
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 16 weeks
  • Other Part Numbers: G4A 6003E, G4A-1A-P-DC24, G4A-1A-P-E-DC24, G4A1APE24DC, G4A1APEDC24, and Z955
