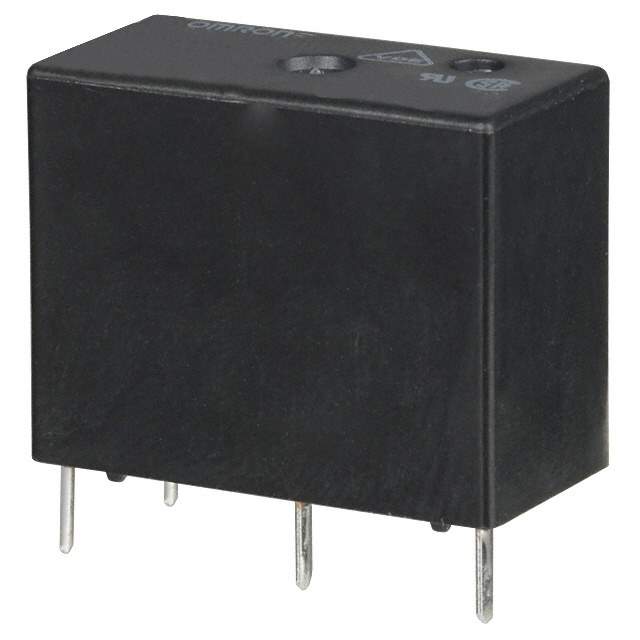

G5SB-14-CB DC12 Real Image
Same model may have multiple batches, images only for reference.

G5SB-14-CB DC12

Part No G5SB-14-CB DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
G5SB-14-CB DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5SB
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 360 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names G5SB-14-CB DC12 BY OMI (N),G5SB-14-CB DC12-ND,G5SB-14-CBDC12,G5SB14CBDC12
Standard Package 100
Win Source Part Number 1178044-G5SB-14-CB DC12
Ultra Librarian 3D Model Ultra Librarian G5SB-14-CB DC12 CAD Model

Description

The G5SB-14-CB DC12 relay is a general-purpose, non-latching through-hole relay with SPDT contact form.

  • Relay Type: General-Purpose, Non-Latching
  • Mounting Type: Through-Hole
  • Contact Form: SPDT
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Contact Material: Silver Alloy
  • Contact Rating: 5A
  • Switching Voltage (Max): 250VAC, 30VDC
  • Sealed: Fully Sealed
  • Operating Temperature Range: -40°C to 70°C
  • Termination Style: PC Pin
  • Package: Bulk
  • Operate Time: 10ms
  • Release Time: 5ms
  • Suitability: Power Relay Applications over 2 Amps
