Same model may have multiple batches, images only for reference.

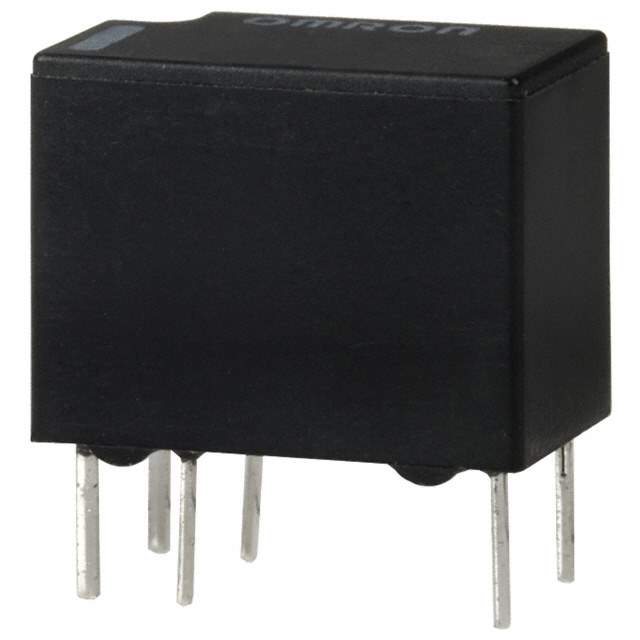

G5V-1-DC9 Real Image
Same model may have multiple batches, images only for reference.

G5V-1-DC9

Part No G5V-1-DC9
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 9VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5V-1
Package Tube
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 7.2 VDC
Must Release Voltage 0.9 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag) , Gold (Au)
Relay Type General Purpose
Coil Resistance 540 Ohms
Base Product Number G5V
Standard Package 25
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1337967-G5V-1-DC9
Ultra Librarian 3D Model Ultra Librarian G5V-1-DC9 CAD Model

Description

The G5V-1 series is a general-purpose non-latching relay with a SPDT (1 Form C) contact form from Omron.

  • Switching Voltage: 125VAC and 60VDC
  • Contact Rating (Current): 1A
  • Coil Voltage: 9VDC
  • Coil Resistance: 540 Ohms
  • Coil Current: 16.7 mA
  • Operate Time: 5 ms
  • Release Time: 5 ms
  • Enclosure: Sealed Fully
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 70°C
