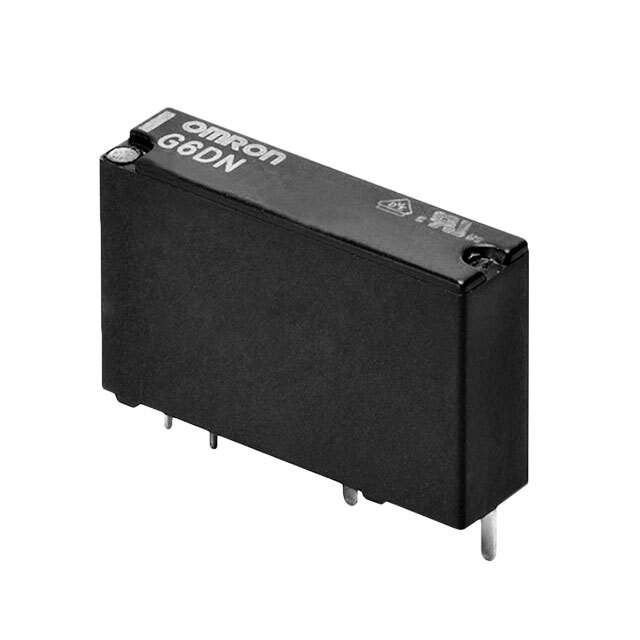

G6DN-1A DC12 Real Image
Same model may have multiple batches, images only for reference.

G6DN-1A DC12

Part No G6DN-1A DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6DN
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC, 125VDC - Max
Coil Current 9.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 8.4 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.31 kOhms
Base Product Number G6D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names Z5440,G6DN1ADC12
Standard Package 25
Win Source Part Number 1151965-G6DN-1A DC12
Ultra Librarian 3D Model Ultra Librarian G6DN-1A DC12 CAD Model

Description

The Omron G6DN-1A DC12 is a general-purpose power relay with a coil voltage of 12VDC.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5 A
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 90°C
