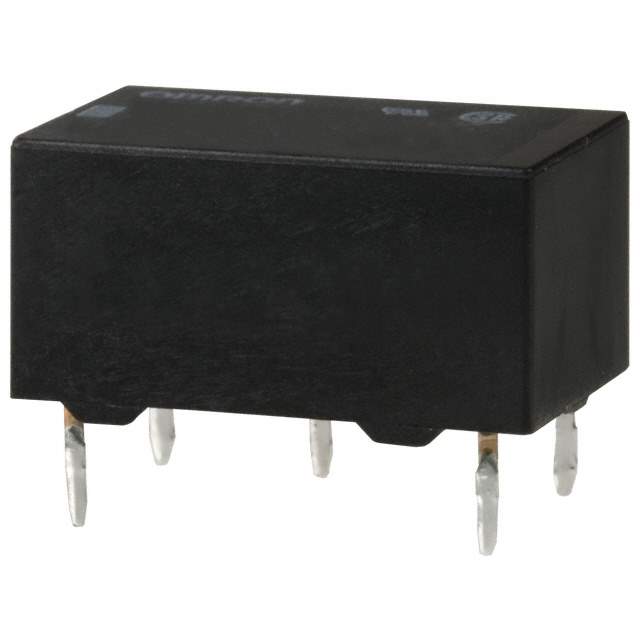

The G6E-134P-ST-US 24VDC is a compact and sensitive PCB power relay manufactured by Omron. This relay is designed for applications requiring low power consumption and reliable switching performance. Its small size and high sensitivity make it suitable for battery-powered devices and energy-efficient systems. The relay offers long operational life and is designed for PCB mounting.

Applications

• Telecommunications equipment
• Security systems
• Building automation systems
• Medical equipment
• Test and measurement equipment
• Industrial control systems

Features

• High sensitivity
• Low coil power consumption
• Compact size
• High switching capacity
• Long life expectancy
• PCB terminal

Benefits

• Reduced power consumption in battery-powered devices.
• Reliable switching performance for various loads.
• Space saving design enabling high-density circuit board layouts.
• Protection against voltage surges and transients.
• Reduced maintenance costs due to long operational life.
• Easy integration into circuit boards with PCB mounting.

Additional Details

The G6E-134P-ST-US 24VDC relay operates with a 24VDC coil voltage. It has a single pole, single throw normally open (SPST-NO) contact configuration. The datasheet specifies the contact rating, including the maximum voltage and current the relay can switch. The ST designation often refers to the terminal type or layout. The US designation likely indicates compliance with UL standards. It's crucial to consult the datasheet for detailed specifications such as coil resistance, operate and release times, and ambient temperature range. The relay is designed to withstand vibration and shock, making it suitable for demanding applications. The contact material is selected to ensure low contact resistance and high reliability. The relay is also designed for automatic insertion equipment, simplifying the manufacturing process.
