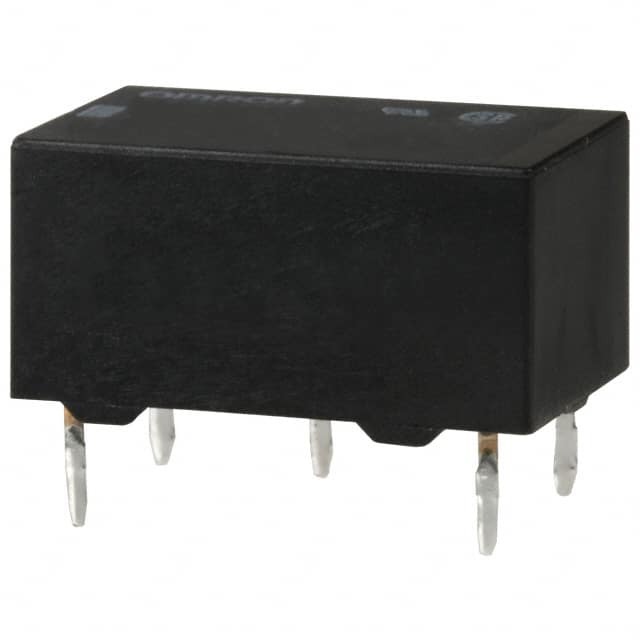

G6E-134P-ST-US-DC12

Part No G6E-134P-ST-US-DC12
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 2A 12VDC  /  General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6E
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number G6E
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315317-G6E-134P-ST-US-DC12
Ultra Librarian 3D Model Ultra Librarian G6E-134P-ST-US-DC12 CAD Model

Description

The Omron G6E-134P-ST-US-DC12 is a general-purpose relay that is designed for high performance.

  • Contact Rating: 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Relay Type: Non-Latching
  • Contact Form: SPDT (1 Form C)
  • Release and Operate Time: 5ms
