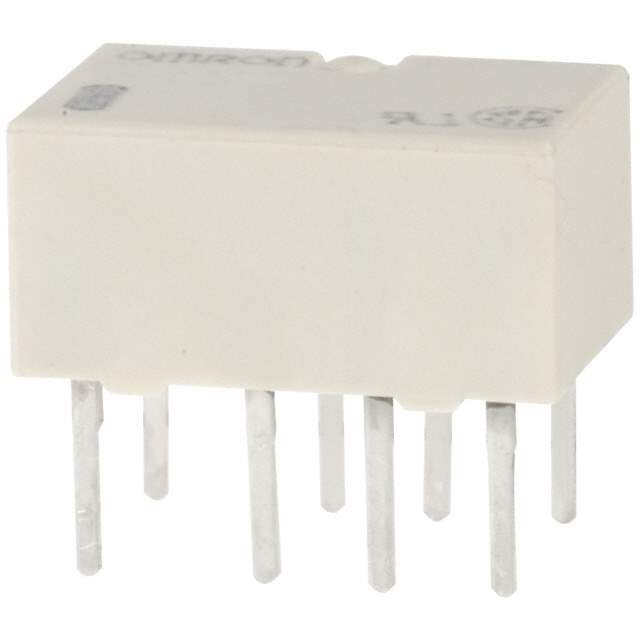

Same model may have multiple batches, images only for reference.

G6K-2P-Y-DC12

Name: G6K-2P-Y-DC12
Brand: Omron
SKU: 1060331
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	G6K-2P-Y-DC12
Manufacturer	Omron
Catalog	Signal Relays, Up to 2 Amps
Description	Electromechanical Relay 12VDC 1.315KOhm 1A DPDT (10x6.5x5)mm THT Signal Relay
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Ambient Temperature Range High	70 °C
Approvals	CSA, UL
Mounting	SMD (SMT)
Case / Package	DIP
Coil Current	9.1 mA
Coil Power	100 mW
Coil Resistance	1.315 kΩ
Coil Type	Non-Latching
Coil Voltage (AC)	12 V
Coil Voltage (DC)	12 V
Contact Current Rating	1 A
Contact Material	Gold, Silver
Current Rating	1 A
Depth	6.5 mm
Height	5.2 mm
Lead Free	Yes
Length	10 mm
Max Current Rating	1 A
Maximum Operating Temperature	70 °C
Max Voltage Rating (AC)	125 V
Max Voltage Rating (DC)	60 V
Min Operating Temperature	-40 °C
Mount	PCB, Through Hole
Number of Contacts	2
Number of Pins	8
Operate Time	3 ms
Power Consumption	100 mW
Radiation Hardening	No
Relay Type	Telecom
Release Time	3 ms
RoHS	Compliant
Switching Current	1 A
Termination	PC Pin
Throw Configuration	DPDT
Voltage Rating (AC)	125 V
Voltage Rating (DC)	60 V
Weight	700 mg
Width	6.5 mm
Win Source Part Number	1060331-G6K-2P-Y-DC12
Categories	Signal Relays,Up to 2 Amps
Manufacturer	Omron
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian G6K-2P-Y-DC12 CAD Model

Alternative Products

Description

The Omron 1060331-G6K-2P-Y-DC12 is a signal relay that has a PC pin termination and a contact material of gold and silver.

Termination: PC pin
Contact Material: gold and silver
Current Rating: 1 A
Contacts: 2
Length: 10 mm
Height: 5.2 mm
Width: 6.5 mm
Coil Resistance: 1.315 kΩ
Coil Current: 9.1 mA
Operate and Release Time: 3 ms
Maximum Operating Temperature: 70°C
RoHS: compliant
Category: Signal Relays, Up to 2 Amps
Supply and Demand: shortage
