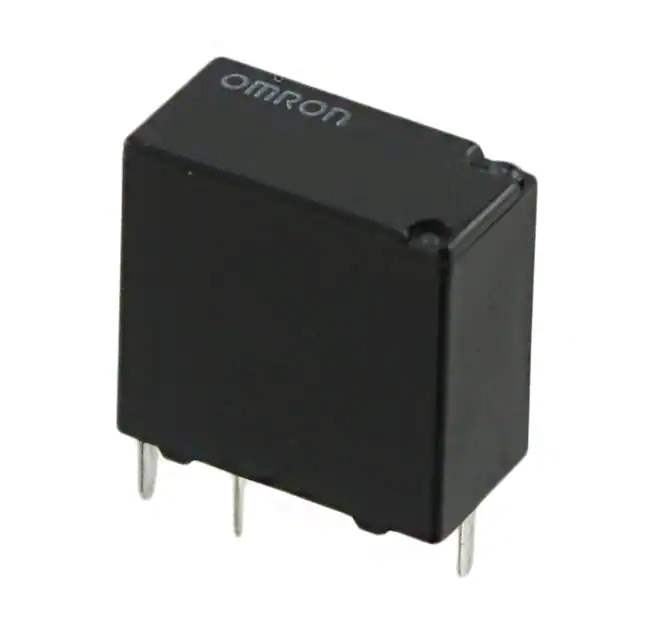

G8N-1L-DC12 Real Image
Same model may have multiple batches, images only for reference.

G8N-1L-DC12

Part No G8N-1L-DC12
Manufacturer Omron
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 30A 12V
Datasheet
G8N-1L-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Omron
Series G8N-1
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 16VDC - Max
Must Operate Voltage 7.2 VDC
Must Release Voltage 1 VDC
Operate Time 10 ms
Release Time 10 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 640mW
Coil Resistance 225 Ohms
Standard Package 2,400 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 872567-G8N-1L-DC12
Ultra Librarian 3D Model Ultra Librarian G8N-1L-DC12 CAD Model

Description

The G8N-1L-DC12 relay is an automotive relay designed for various applications.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 30 A
  • Coil Voltage: 12VDC
  • Termination Style: PC pin
  • Coil Type: Non-latching
  • Coil Resistance: 225 Ohms
  • Coil Current: 53.3 mA
  • Operate and Release Time: 10 ms
  • Contact Material: Silver tin oxide (AgSnO)
  • Switching Voltage: 16VDC
  • Manufacturer: Omron
  • Status: Obsolete
