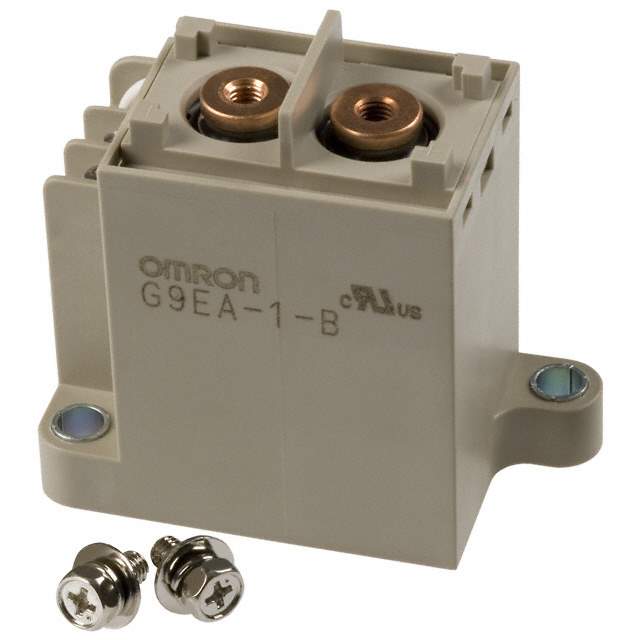

G9EA-1-B DC24 Real Image
Same model may have multiple batches, images only for reference.

G9EA-1-B DC24

Part No G9EA-1-B DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 60A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
Datasheet
G9EA-1-B DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G9EA-1
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 60 A
Switching Voltage 400VDC - Max
Coil Current 208 mA
Coil Type Non Latching
Termination Style Screw Terminal
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.92 VDC
Operate Time 50 ms
Release Time 30 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 115 Ohms
Base Product Number G9EA
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1336796-G9EA-1-B DC24
Ultra Librarian 3D Model Ultra Librarian G9EA-1-B DC24 CAD Model

Description

The G9EA-1-B DC24 relay is a power relay designed for use in various applications. Omron Electronics Inc-EMC Div

  • Termination Style: Screw Terminal
  • Packaging: Bulk
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Not Specified
  • Coil Resistance: 115 Ohms
  • Coil Current: 208 mA
  • Operate Time: 50 ms
  • Release Time: 30 ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 60 A
  • Switching Voltage: 400VDC - Max
  • Seal Rating: Sealed - Fully
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C ~ 70°C
  • MSL Level: Not Applicable
  • Coil Insulation: Not Specified
  • Must Operate Voltage: 18 VDC
  • Must Release Voltage: 1.92 VDC
  • HTSUS: 8536.41.0050
