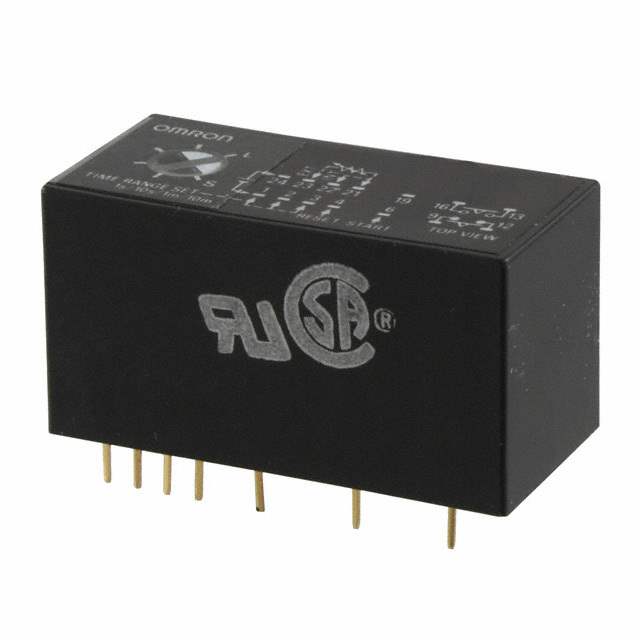

H3FA-AU-DC12V Real Image
Same model may have multiple batches, images only for reference.

H3FA-AU-DC12V

Part No H3FA-AU-DC12V
Manufacturer Omron
Catalog Time Delay Relays
Description Off-Delay Time Delay Relay DPST-NO/NC (1 Form A and B) 0.1 Sec ~ 10 Min Delay 3A @ 250VAC Through Hole
Datasheet
H3FA-AU-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays
Family Time Delay Relays
Manufacturer Omron
Series H3FA
Relay Type Integrated
Function Off-Delay
Circuit DPST-NO/NC (1 Form A and B)
Delay Time 0.1 Sec ~ 10 Min
Output Type Mechanical Relay
Contact Rating @ Voltage 3A @ 250VAC
Operating Supply Voltage 12VDC
Mounting Style Through Hole
Termination Style PC Pin
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage, Trigger Signal
Win Source Part Number 138956-H3FA-AU-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H3FA-AU-DC12V CAD Model

Description

The Omron H3FA-AU-DC12V is a time delay relay that operates at an output type of mechanical relay.

  • Output Type: Mechanical Relay
  • Delay Time: 0.1 Sec ~ 10 Min
  • Timing Adjustment: Screwdriver Slot
  • Timing Initiate: Input Voltage and Trigger Signal
  • Circuit: DPST-NO/NC (1 Form A and B)
  • Contact Rating: 3A @ 250VAC
  • Function: Off-Delay
  • Supply Voltage: 12VDC
  • Mounting Style: Through-Hole
  • Termination Style: PC Pin
  • Supply and Demand: Limited
