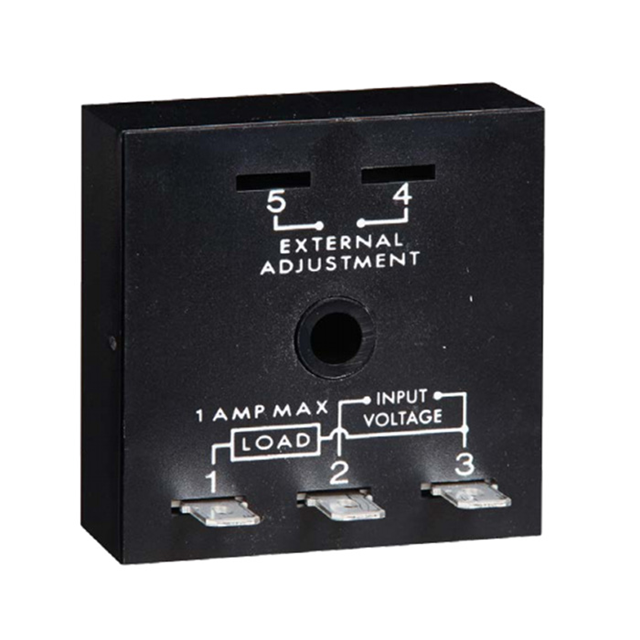

TS1621 Real Image
Same model may have multiple batches, images only for reference.

TS1621

Part No TS1621
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 3SEC  /  On-Delay Time Delay Relay SPST-NO (1 Form A) 0.05 Sec ~ 3 Sec Delay Chassis Mount
Datasheet
TS1621 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TS1
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function On-Delay
Circuit SPST-NO (1 Form A)
Delay Time 0.05 Sec ~ 3 Sec
Voltage - Supply 230VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method External Resistor
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TS1621
Standard Package 1
Win Source Part Number 1005996-TS1621
Ultra Librarian 3D Model Ultra Librarian TS1621 CAD Model

Description

The TS1621 is a time delay relay that belongs to the industrial automation and controls category of electronic components and manufactured by Littelfuse Inc.

  • Product Type: Solid-State Relay
  • Function: On-Delay
  • Circuit: SPST-NO (1 Form A)
  • Voltage Supply: 230VAC
  • Timing Adjustment Method: External Resistor
  • Timing Initiate Method: Input Voltage
