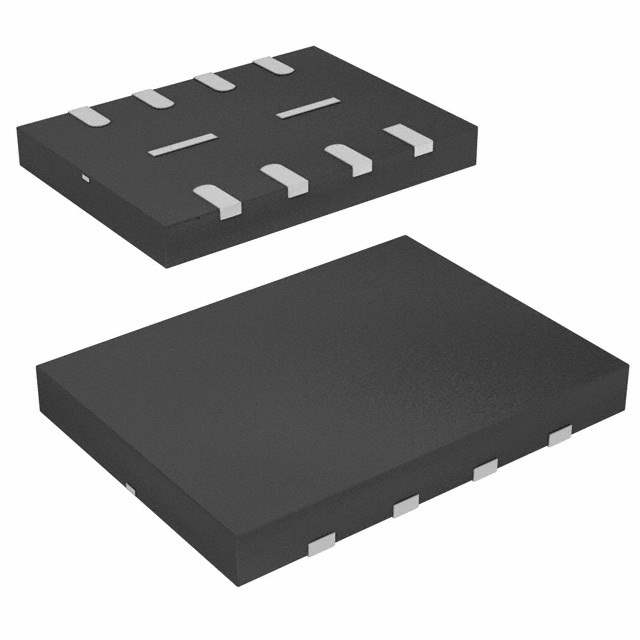

W25Q16FWUUIQ Real Image
Same model may have multiple batches, images only for reference.

W25Q16FWUUIQ

Part No W25Q16FWUUIQ
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8USON / FLASH - NOR Memory IC 16Mbit SPI - Quad I/O, QPI 104 MHz 8-USON (4x3)
Datasheet
W25Q16FWUUIQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 60µs, 3ms
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package 8-USON (4x3)
Base Product Number W25Q16
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8542.32.0071
Win Source Part Number 903150-W25Q16FWUUIQ
Ultra Librarian 3D Model Ultra Librarian W25Q16FWUUIQ CAD Model

Description

The 903150-W25Q16FWUUIQ is a SpiFlash™ memory chip from Winbond Electronics.

  • Memory Capacity: 16Mbit
  • Technology: FLASH-NOR
  • Voltage Supply Range: 1.65V to 1.95V
  • Mounting Type: surface mount
  • Package: 8-UFDFN Exposed Pad
  • Memory Interfaces: SPI Quad I/O and QPI
  • Temperature Range: -40°C to 85°C
  • Product Status: obsolete
