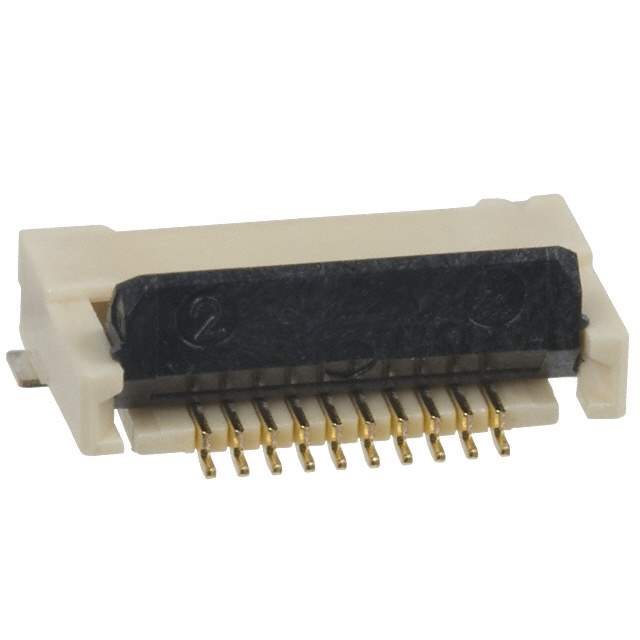

XF2M-1015-1A

Name: XF2M-1015-1A
Brand: Omron
SKU: 536662
Availability: InStock
Rating: 4.93 (504 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XF2M-1015-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 10POS 0.50MM R/A
Datasheet	XF2M-1015-1A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	10
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Contact Finish Thickness	5.9μin (0.15μm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1119398-XF2M-1015-1A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian XF2M-1015-1A CAD Model

Alternative Products

Description

The Omron XF2M series FPC connector is a top and bottom contact connector with 10 positions and a pitch of 0.020 inches (0.50mm).

Voltage Rating: 50V
Current Rating: 0.5A
Cable End Type: tapered
Locking Feature: rotary lock, backlock
Housing Material: liquid crystal polymer (LCP), halogen-free
Actuator Material: liquid crystal polymer (LCP), halogen-free
Housing Color: natural
Mounting Type: surface mount, right angle
Temperature Range: -30°C to 85°C
Mating Cycle: 20
