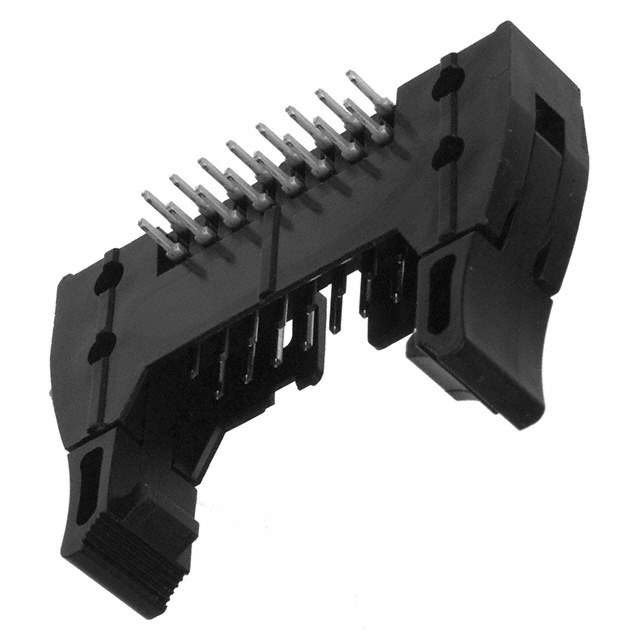

XG4A-1634 Real Image
Same model may have multiple batches, images only for reference.

XG4A-1634

Part No XG4A-1634
Manufacturer Omron
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 16POS 2.54MM  /  Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Finish - Post Tin
Contact Material Brass, Nickel
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number XG4A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names OR990,XG4A1634BYOMZ,XG4A-1634 BY OMZ,XG4A1634,XG4A1634-ND
Standard Package 70
Win Source Part Number 1172504-XG4A-1634
Ultra Librarian 3D Model Ultra Librarian XG4A-1634 CAD Model

Description

The XG4 series is a 16-position male pin header connector with a keying slot and mounting flange.

  • Series: XG4
  • Positions: 16
  • Connection: Board-to-Cable/Wire
  • Design: Shrouded 4-Wall
  • Connector Type: Header
  • Contact Type: Male Pin
  • Loaded Positions: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Contact Material: Brass with Nickel Plating
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Pitch for Mating: 0.100" (2.54mm)
  • Contact Finish for Mating: Gold, 5.90µin (0.150µm)
  • Contact Finish for Post: Tin, 78.7µin (2.00µm)
  • Temperature Range: -55°C to 105°C
  • Mounting: Through-Hole, Right-Angle
