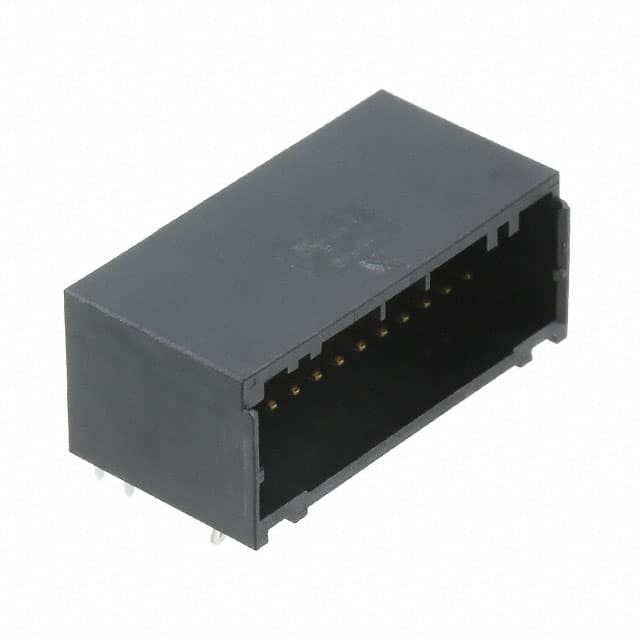

Same model may have multiple batches, images only for reference.
1-1939638-3
Same model may have multiple batches, images only for reference.

1-1939638-3

Part No 1-1939638-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 26POS 2MM / Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-1100
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 125V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1939638
Standard Package 16 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853780-1-1939638-3
Ultra Librarian 3D Model Ultra Librarian 1-1939638-3 CAD Model

Description

The Dynamic D-1100 Header is a male pin connector designed for board-to-board or cable connections. TE Connectivity is the manufacturer.

  • Series: Dynamic D-1100
  • Positions: 26
  • Rows: 2
  • Features: Board Lock, Detent Lock
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Insulation: Thermoplastic, Polyester, Glass-Filled
  • Voltage Rating: 125V
  • Package: Tube
  • Pieces per Package: 16
  • Operating Temperature: -55°C to 105°C
