XG4C-1074

Name: XG4C-1074
Brand: Omron
SKU: 1000793
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XG4C-1074
Manufacturer	Omron
Catalog	Rectangular Connectors

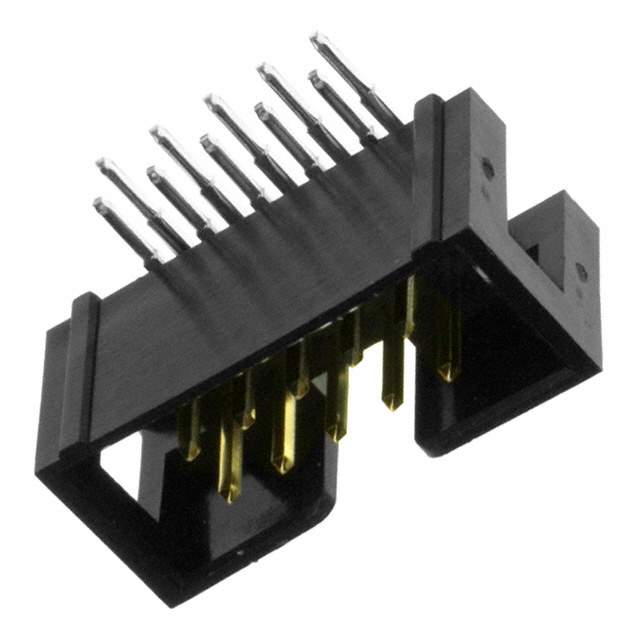

Description	CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.323" (8.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	Z12439,XG4C-1074 BY OMZ,2266-XG4C-1074,XG4C-1074-ND,XG4C1074
Standard Package	150
Win Source Part Number	1000793-XG4C-1074
Ultra Librarian 3D Model	Ultra Librarian XG4C-1074 CAD Model

Description

The Omron Electronics Inc-EMC Div XG4C-1074 is a 10-position male pin header connector with a keying slot feature.

Connection Type: board-to-board or cable style connections
Material: brass and nickel
Voltage Rating: 300V
Contact Finish: gold with a thickness of 5.90µin (0.150µm) for mating and tin with a thickness of 78.7µin (2.00µm) for post
Shrouding: shrouded with 4 walls
Row Spacing: 0.100" (2.54mm)
Temperature Range: -55°C to 105°C
Current Rating: 3A
