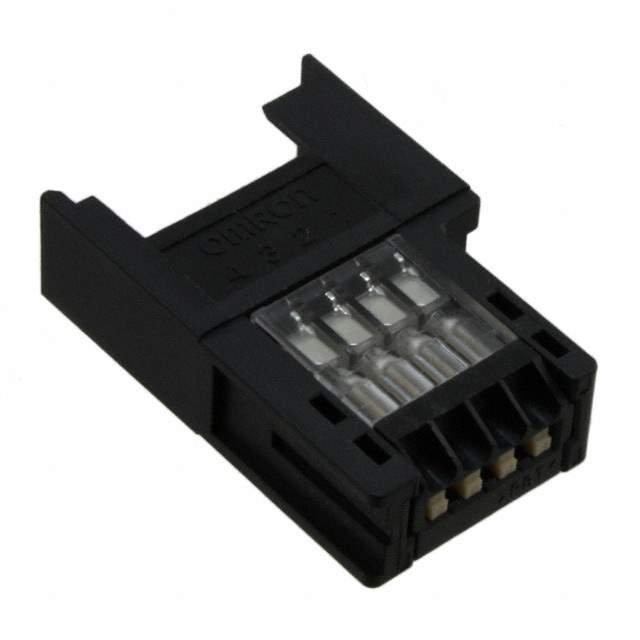

XN2B-1470 Real Image
Same model may have multiple batches, images only for reference.

XN2B-1470

Part No XN2B-1470
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 4POS IDC 20-28AWG GOLD / 4 Position Rectangular Receptacle Connector Spring Clamp Gold 20-28 AWG
Datasheet
XN2B-1470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XN2
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Spring Clamp
Wire Type Discrete
Wire Gauge 20-28 AWG
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Base Product Number XN2B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names XN2B1470,OR1025
Standard Package 90
Win Source Part Number 1081427-XN2B-1470
Ultra Librarian 3D Model Ultra Librarian XN2B-1470 CAD Model

Description

The Omron XN2B-1470 connector is a rectangular connector that is free-hanging and panel mountable.

  • Connector Type: Receptacle
  • Positions: 4
  • Pitch: 0.079" (2.00mm)
  • Contact Type: Female Socket
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Packaging: Bulk
  • Wire Gauge Range: 20-28 AWG
  • Mounting Type: Free-Hanging (In-Line)
  • Alternative Parts: 103958-3, 14-56-7046, 103956-3, 0014567042, 14-60-0041, and 1-103957-3XN2B1470
