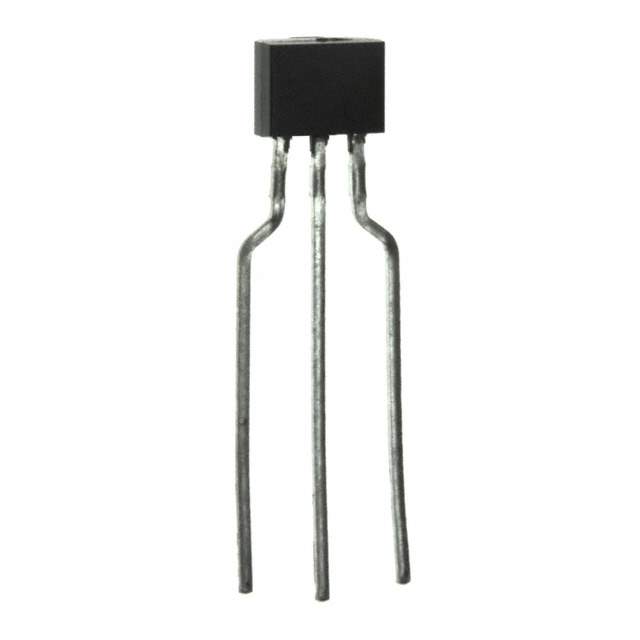

ON Semiconductor 2SD1012F-SPA Bipolar Transistor

The ON Semiconductor 2SD1012F-SPA is a high-performance NPN bipolar junction transistor (BJT) designed for use in a wide array of electronic applications. This versatile transistor is well-suited for power amplification and switching, making it an ideal choice for designers looking for a reliable component that can handle moderate power levels.

Key Features:

• Voltage and Current Ratings: The 2SD1012F-SPA is capable of withstanding collector-emitter voltages up to 60V, with collector currents up to 3A. This makes it robust enough for various circuits that require a moderate power level.
• Power Dissipation: With a power dissipation capacity of 25W, this transistor can handle significant energy without overheating, ensuring stable performance in your electronic designs.
• High DC Current Gain: Featuring a high DC current gain (hFE) range, the device can amplify weak signals effectively, making it useful in audio amplifiers and signal processing circuits.
• Complementary PNP Type: The 2SD1012F-SPA has a complementary PNP type available, allowing for the creation of push-pull amplifier configurations which are beneficial in reducing distortion and improving overall efficiency.
• Package: It comes in a TO-220PF package, which is widely used and easy to mount on a printed circuit board (PCB). This package also provides good thermal performance, ensuring reliability even under high load conditions.

Applications:

The ON Semiconductor 2SD1012F-SPA transistor is ideal for a diverse range of applications, including:

• Power regulators
• Audio power amplifiers
• Switching circuits
• Driver stages in high-fidelity amplifiers and sound reinforcement systems
• Motor control circuits

With its robust performance characteristics and versatile applications, the 2SD1012F-SPA from ON Semiconductor is a reliable choice for professionals and hobbyists alike looking to build or repair electronic devices requiring efficient power handling and amplification capabilities.
